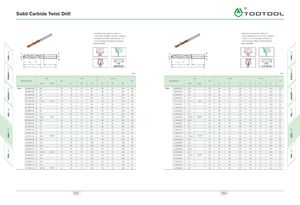

Solid Carbide Twist Drill A\
111


- Manufacturing standard : DIN 6537 - Manufacturing standard : DIN 6537
- Chisel edge grinding : TOOTOOL standard - Chisel edge grinding: TOOTOOL standard
- Tolerance of cutting edge diameter: m 7 - Tolerance of cutting edge diameter : m 7
- Chip evacuation flute special designed, - Chip evacuation flute special designed ,
easy evacuation easy evacuation


i l
Dc <Ji Dc tii
t ] t
Lc Lc
HA HA
12 12
' 5
DIN 6535 '5 DIN 6535

mm mm
Dc 3x D 5x D Dc 3x D 5x D
Designation dl 15 Designation dl 15
mm inch Lc 12 II Lc 12 II mm inch Lc 12 II Lc 12 II
DCl..- 08.800A10S- 8.8 10 35 47 89 49 61 103 40 DCl..- 10.800A12S- 10.8 12 40 55 102 56 71 118 45
08.900A10S- 8.9 10 35 47 89 49 61 103 40 10.900A12S- 10.9 12 40 55 102 56 71 118 45
09.000A10S- 9.0 10 35 47 89 49 61 103 40 11.000A12S- 11.0 12 40 55 102 56 71 118 45
09.100A10S- 9.1 10 35 47 89 49 61 103 40 11.100A12S- 11.1 12 40 55 102 56 71 118 45
09.128A10S- 9.128 23/64" 10 35 47 89 49 61 103 40 11.113A12S- 11.113 7/16" 12 40 55 102 56 71 118 45
09.200A10S- 9.2 10 35 47 89 49 61 103 40 11.200A12S- 11.2 12 40 55 102 56 71 118 45
09.300A10S- 9.3 10 35 47 89 49 61 103 40 11.300A12S- 11.3 12 40 55 102 56 71 118 45
09.400A10S - 9.4 10 35 47 89 49 61 103 40 11.400A12S- 11.4 12 40 55 102 56 71 118 45
09.500A10S - 9.5 10 35 47 89 49 61 103 40 11.500A12S- 11.5 12 40 55 102 56 71 118 45
09.525A10S- 9.525 3/8" 10 35 47 89 49 61 103 40 11.509A12S- 11.509 29/64" 12 40 55 102 56 71 118 45
09.550A10S- 9.55 10 35 47 89 49 61 103 40 11.550A12S- 11.55 12 40 55 102 56 71 118 45
09.600A10S- 9.6 10 35 47 89 49 61 103 40 11.600A12S- 11.6 12 40 55 102 56 71 118 45
09.700A10S- 9.7 10 35 47 89 49 61 103 40 11.700A12S- 11.7 12 40 55 102 56 71 118 45
09.800A10S- 9.8 10 35 47 89 49 61 103 40 11.800A12S- 11.8 12 40 55 102 56 71 118 45
09.900A10S- 9.9 10 35 47 89 49 61 103 40 11.900A12S- 11.9 12 40 55 102 56 71 118 45
09.922A10S- 9.922 25/64" 10 35 47 89 49 61 103 40 11.906A12S- 11.906 15/32" 12 40 55 102 56 71 118 45
10.000A10S- 10.0 10 35 47 89 49 61 103 40 12.000A12S- 12.0 12 40 55 102 56 71 118 45
10.100A12S- 10.1 12 40 55 102 56 71 118 45 12.100A14S- 12.1 14 43 60 107 60 77 124 45
10.200A12S- 10.2 12 40 55 102 56 71 118 45 12.200A14S- 12.2 14 43 60 107 60 77 124 45
10.300A12S- 10.3 12 40 55 102 56 71 118 45 12.250A14S- 12.25 14 43 60 107 60 77 124 45
10.319A12S- 10.319 13/ 32" 12 40 55 102 56 71 118 45 12.300A14S- 12.3 14 43 60 107 60 77 124 45
10.400A12S- 10.4 12 40 55 102 56 71 118 45 12.303A14S- 12.303 31/64" 14 43 60 107 60 77 124 45
10.500A12S- 10.5 12 40 55 102 56 71 118 45 12.400A14S- 12.4 14 43 60 107 60 77 124 45
10.600A12S- 10.6 12 40 55 102 56 71 118 45 12.500A14S- 12..5 14 43 60 107 60 77 124 45
10.700A12S- 10.7 12 40 55 102 56 71 118 45 12.600A14S- 12.6 14 43 60 107 60 77 124 45
10.716A12S - 10.716 27/64" 12 40 55 102 56 71 118 45 12.700A14S- 12.7 14 43 60 107 60 77 124 45


753 754
