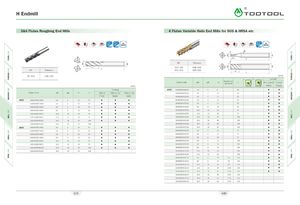

3&4 Flutes Roughing End Mills 4 Flutes Variable Helix End Mills for SUS & HRSA etc
| y | ?- | ' | |||||||
| 0D | Tolerance | Li C | L | O I | |||||
| 02.5-09 | 0.00-0.02 | "O S! | |||||||
| 010-016 | 0.00-0.03 | L1 | L | i | |||||
| Aid | C | Carb | (mm) ide | ||||||
| OrderCode | LI | voance diameter | L | Non-coated | Coated | ||||
| ShieldEdge | ShieldEdge | TPK01 | PDL025 | ||||||
| 4VFE 03004000V08050 | 3.0 | 4 | 8 | 50 | |||||
| 04004000V10050 | 4.0 | 4 | 10 | 50 | |||||
| 05005000V13050 | 5.0 | 5 | 13 | 50 | |||||
| 05006000V13050 | 5.0 | 6 | 13 | 50 | |||||
| 06006000V15050 | 6.0 | 6 | 15 | 50 | |||||
| 08008000V20060 | 8.0 | 8 | 20 | 60 | |||||
| 10010000V25075 | 10.0 | 10 | 25 | 75 | |||||
| 12012000V30075 | 12.0 | 12 | 30 | 75 | |||||
| 14014000V35100 | 14.0 | 14 | 35 | 100 | |||||
| 16016000V40100 | 16.0 | 16 | 40 | 100 | |||||
| 18018000V40100 | 18.0 | 18 | 40 | 100 | |||||
| 20020000V45100 | 20.0 | 20 | 45 | 100 | |||||
| 04004000V10075 | 4.0 | 4 | 10 | 75 | |||||
| 06006000V15075 | 6.0 | 6 | 15 | 75 | |||||
| 08008000V20075 | 8.0 | 8 | 20 | 75 | |||||
| 04004000V12100 | 4.0 | 4 | 12 | 100 | |||||
| 06006000V18100 | 6.0 | 6 | 18 | 100 | |||||
| 08008000V24100 | 8.0 | 8 | 24 | 100 | |||||
| 10010000V30100 | 10.0 | 10 | 30 | 100 | |||||
| 12012000V36100 | 12.0 | 12 | 36 | 100 | |||||
| 06006000V18150 | 6.0 | 6 | 18 | 5.8 | 150 | ||||
| 08008000V24150 | 8.0 | 8 | 24 | 7.8 | 150 | ||||
| 10010000V30150 | 10.0 | 10 | 30 | 9.8 | 150 | ||||
| 12012000V36150 | 12.0 | 12 | 36 | 11.8 | 150 | ||||
| 14014000V42150 | 14.0 | 14 | 42 | 13.8 | 150 | ||||
| 16016000V48150 | 16.0 | 16 | 48 | 15.8 | 150 | ||||
| 18018000V54150 | 18.0 | 18 | 54 | 17.8 | 150 | ||||
| 20020000V60150 | 20.0 | 20 | 60 | 19.8 | 150 |
si Li
| (mm) | ||||||||
| Coating | ||||||||
| OrderCode | cpd | LI | L | -HRC52 | HRC50-62 | HRC52-68 | ||
| TT550 | TS600 | N400 | ||||||
| 3RFE | 04004000V10050 | 4.0 | 4 | 10 | 50 | |||
| 05006000V13050 | 5.0 | 6 | 13 | 50 | ||||
| 06006000V16050 | 6.0 | 6 | 16 | 50 | ||||
| 08008000V20060 | 8.0 | 8 | 20 | 60 | ||||
| 10010000V25075 | 10.0 | 10 | 25 | 75 | ||||
| 12012000V30075 | 12.0 | 12 | 30 | 75 | ||||
| 16016000V45100 | 16.0 | 16 | 45 | 100 | ||||
| 20020000V45100 | 20.0 | 20 | 45 | 100 | ||||
| 4RFE | 04004000V10050 | 4.0 | 4 | 10 | 50 | |||
| 05006000V13050 | 5.0 | 6 | 13 | 50 | ||||
| 06006000V16050 | 6.0 | 6 | 16 | 50 | ||||
| 08008000V20060 | 8.0 | 8 | 20 | 60 | ||||
| 10010000V25075 | 10.0 | 10 | 25 | 75 | ||||
| 12012000V30075 | 12.0 | 12 | 30 | 75 | ||||
| 16016000V45100 | 16.0 | 16 | 45 | 100 | ||||
| 20020000V45100 | 20.0 | 20 | 45 | 100 |
