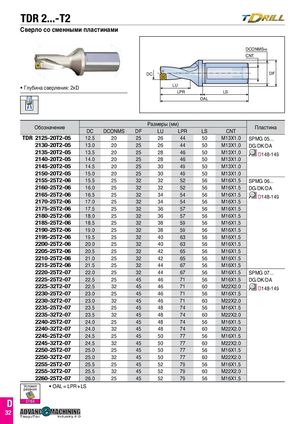

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 99
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC
- Глубина сверления: 2xD LU
LPR LS OAL
DCONMSh6 CNT
DF
| Обозначение | DC | DCONMS | Р DF | азмеры( LU | мм) LPR | LS | CNT | Пластина |
| TDR 2125-20T2-05 | 12.5 | 20 | 25 | 26 | 44 | 50 | M13X1.0 | SPMG 05... |
| 2130-20T2-05 | 13.0 | 20 | 25 | 26 | 44 | 50 | M13X1.0 | DG/DK/DA |
| 2135-20T2-05 | 13.5 | 20 | 25 | 28 | 46 | 50 | M13X1.0 | D148-149 |
| 2140-20T2-05 | 14.0 | 20 | 25 | 28 | 46 | 50 | M13X1.0 | |
| 2145-20T2-05 | 14.5 | 20 | 25 | 30 | 49 | 50 | M13X1.0 | |
| 2150-20T2-05 | 15.0 | 20 | 25 | 30 | 49 | 50 | M13X1.0 | |
| 2155-25T2-06 | 15.5 | 25 | 32 | 32 | 52 | 56 | M16X1.5 | SPMG 06... |
| 2160-25T2-06 | 16.0 | 25 | 32 | 32 | 52 | 56 | M16X1.5 | DG/DK/DA |
| 2165-25T2-06 | 16.5 | 25 | 32 | 34 | 54 | 56 | M16X1.5 | D148-149 |
| 2170-25T2-06 | 17.0 | 25 | 32 | 34 | 54 | 56 | M16X1.5 | |
| 2175-25T2-06 | 17.5 | 25 | 32 | 36 | 57 | 56 | M16X1.5 | |
| 2180-25T2-06 | 18.0 | 25 | 32 | 36 | 57 | 56 | M16X1.5 | |
| 2185-25T2-06 | 18.5 | 25 | 32 | 38 | 59 | 56 | M16X1.5 | |
| 2190-25T2-06 | 19.0 | 25 | 32 | 38 | 59 | 56 | M16X1.5 | |
| 2195-25T2-06 | 19.5 | 25 | 32 | 40 | 63 | 56 | M16X1.5 | |
| 2200-25T2-06 | 20.0 | 25 | 32 | 40 | 63 | 56 | M16X1.5 | |
| 2205-25T2-06 | 20.5 | 25 | 32 | 42 | 65 | 56 | M16X1.5 | |
| 2210-25T2-06 | 21.0 | 25 | 32 | 42 | 65 | 56 | M16X1.5 | |
| 2215-25T2-06 | 21.5 | 25 | 32 | 44 | 67 | 56 | M16X1.5 | |
| 2220-25T2-07 | 22.0 | 25 | 32 | 44 | 67 | 56 | M16X1.5 | SPMG 07... |
| 2225-25T2-07 | 22.5 | 25 | 45 | 46 | 71 | 56 | M16X1.5 | DG/DK/DA |
| 2225-32T2-07 | 22.5 | 32 | 45 | 46 | 71 | 60 | M22X2.0 | D148-149 |
| 2230-25T2-07 | 23.0 | 25 | 45 | 46 | 71 | 56 | M16X1.5 | |
| 2230-32T2-07 | 23.0 | 32 | 45 | 46 | 71 | 60 | M22X2.0 | |
| 2235-25T2-07 | 23.5 | 25 | 45 | 48 | 74 | 56 | M16X1.5 | |
| 2235-32T2-07 | 23.5 | 32 | 45 | 48 | 74 | 60 | M22X2.0 | |
| 2240-25T2-07 | 24.0 | 25 | 45 | 48 | 74 | 56 | M16X1.5 | |
| 2240-32T2-07 | 24.0 | 32 | 45 | 48 | 74 | 60 | M22X2.0 | |
| 2245-25T2-07 | 24.5 | 25 | 45 | 50 | 77 | 56 | M16X1.5 | |
| 2245-32T2-07 | 24.5 | 32 | 45 | 50 | 77 | 60 | M22X2.0 | |
| 2250-25T2-07 | 25.0 | 25 | 45 | 50 | 77 | 56 | M16X1.5 | |
| 2250-32T2-07 | 25.0 | 32 | 45 | 50 | 77 | 60 | M22X2.0 | |
| 2255-25T2-07 | 25.5 | 25 | 45 | 52 | 79 | 56 | M16X1.5 | |
| 2255-32T2-07 | 25.5 | 32 | 45 | 52 | 79 | 60 | M22X2.0 | |
| 2260-25T2-07 | 26.0 | 25 | 45 | 52 | 79 | 56 | M16X1.5 |
