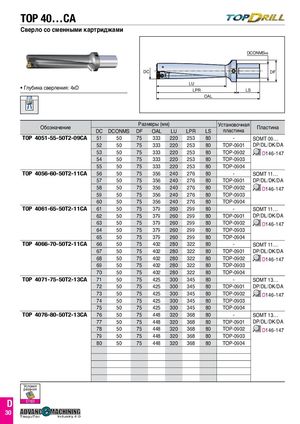

DCONMSh6
DC DF LU
- Глубина сверления: 4xD
LPR LS OAL
| Об | Раз | меры(м | м) | Установочная | П | ||||
| означение | DC | DCONMS | DF | OAL | LU | LPR | LS | пластина | ластина |
| TOP 4051-55-50T2-09CA | 51 | 50 | 75 | 333 | 220 | 253 | 80 | - | SOMT 09… |
| 52 | 50 | 75 | 333 | 220 | 253 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 53 | 50 | 75 | 333 | 220 | 253 | 80 | TOP-0902 | D146-147 | |
| 54 | 50 | 75 | 333 | 220 | 253 | 80 | TOP-0903 | ||
| 55 | 50 | 75 | 333 | 220 | 253 | 80 | TOP-0904 | ||
| TOP 4056-60-50T2-11CA | 56 | 50 | 75 | 356 | 240 | 276 | 80 | - | SOMT 11… |
| 57 | 50 | 75 | 356 | 240 | 276 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 58 | 50 | 75 | 356 | 240 | 276 | 80 | TOP-0902 | D146-147 | |
| 59 | 50 | 75 | 356 | 240 | 276 | 80 | TOP-0903 | ||
| 60 | 50 | 75 | 356 | 240 | 276 | 80 | TOP-0904 | ||
| TOP 4061-65-50T2-11CA | 61 | 50 | 75 | 379 | 260 | 299 | 80 | - | SOMT 11… |
| 62 | 50 | 75 | 379 | 260 | 299 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 63 | 50 | 75 | 379 | 260 | 299 | 80 | TOP-0902 | D146-147 | |
| 64 | 50 | 75 | 379 | 260 | 299 | 80 | TOP-0903 | ||
| 65 | 50 | 75 | 379 | 260 | 299 | 80 | TOP-0904 | ||
| TOP 4066-70-50T2-11CA | 66 | 50 | 75 | 402 | 280 | 322 | 80 | - | SOMT 11… |
| 67 | 50 | 75 | 402 | 280 | 322 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 68 | 50 | 75 | 402 | 280 | 322 | 80 | TOP-0902 | D146-147 | |
| 69 | 50 | 75 | 402 | 280 | 322 | 80 | TOP-0903 | ||
| 70 | 50 | 75 | 402 | 280 | 322 | 80 | TOP-0904 | ||
| TOP 4071-75-50T2-13CA | 71 | 50 | 75 | 425 | 300 | 345 | 80 | - | SOMT 13… |
| 72 | 50 | 75 | 425 | 300 | 345 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 73 | 50 | 75 | 425 | 300 | 345 | 80 | TOP-0902 | D146-147 | |
| 74 | 50 | 75 | 425 | 300 | 345 | 80 | TOP-0903 | ||
| 75 | 50 | 75 | 425 | 300 | 345 | 80 | TOP-0904 | ||
| TOP 4076-80-50T2-13CA | 76 | 50 | 75 | 448 | 320 | 368 | 80 | - | SOMT 13… |
| 77 | 50 | 75 | 448 | 320 | 368 | 80 | TOP-0901 | DP/DL/DK/DA | |
| 78 | 50 | 75 | 448 | 320 | 368 | 80 | TOP-0902 | D146-147 | |
| 79 | 50 | 75 | 448 | 320 | 368 | 80 | TOP-0903 | ||
| 80 | 50 | 75 | 448 | 320 | 368 | 80 | TOP-0904 |
