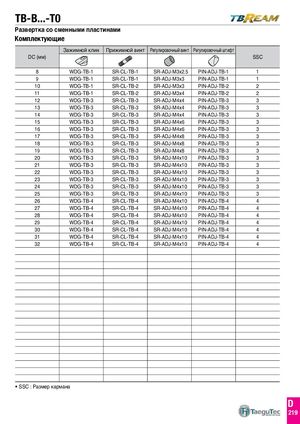

TB-B...-T0
Развертка со сменными пластинами
Комплектующие
| Зажимной клин | Прижимной винт | Регулировочный винт | Регулировочный штифт | ||
| DC (мм) | SSC | ||||
| 8 | WDG-TB-1 | SR-CL-TB-1 | SR-ADJ-M3x2.5 | PIN-ADJ-TB-1 | 1 |
| 9 | WDG-TB-1 | SR-CL-TB-1 | SR-ADJ-M3x3 | PIN-ADJ-TB-1 | 1 |
| 10 | WDG-TB-1 | SR-CL-TB-2 | SR-ADJ-M3x3 | PIN-ADJ-TB-2 | 2 |
| 11 | WDG-TB-1 | SR-CL-TB-2 | SR-ADJ-M3x4 | PIN-ADJ-TB-2 | 2 |
| 12 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x4 | PIN-ADJ-TB-3 | 3 |
| 13 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x4 | PIN-ADJ-TB-3 | 3 |
| 14 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x4 | PIN-ADJ-TB-3 | 3 |
| 15 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x6 | PIN-ADJ-TB-3 | 3 |
| 16 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x6 | PIN-ADJ-TB-3 | 3 |
| 17 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x8 | PIN-ADJ-TB-3 | 3 |
| 18 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x8 | PIN-ADJ-TB-3 | 3 |
| 19 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x8 | PIN-ADJ-TB-3 | 3 |
| 20 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 21 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 22 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 23 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 24 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 25 | WDG-TB-3 | SR-CL-TB-3 | SR-ADJ-M4x10 | PIN-ADJ-TB-3 | 3 |
| 26 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 27 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 28 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 29 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 30 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 31 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
| 32 | WDG-TB-4 | SR-CL-TB-4 | SR-ADJ-M4x10 | PIN-ADJ-TB-4 | 4 |
