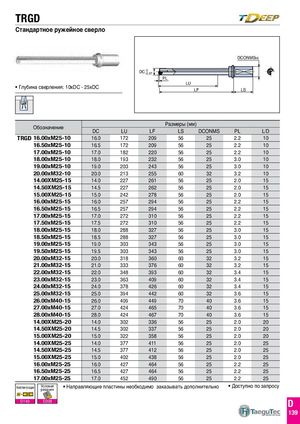

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 206
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC 0 -0.07 Глубина сверления: 10xDC - 25xDC
PL
DCONMSh6
LU LF LS
| Обозначение | DC | LU | Р LF | азмеры(м LS | м) DCONMS | PL | L/D |
| TRGD 16.00xM25-10 | 16.0 | 172 | 209 | 56 | 25 | 2.2 | 10 |
| 16.50xM25-10 | 16.5 | 172 | 209 | 56 | 25 | 2.2 | 10 |
| 17.00xM25-10 | 17.0 | 182 | 220 | 56 | 25 | 2.2 | 10 |
| 18.00xM25-10 | 18.0 | 193 | 232 | 56 | 25 | 3.0 | 10 |
| 19.00xM25-10 | 19.0 | 203 | 243 | 56 | 25 | 3.0 | 10 |
| 20.00xM32-10 | 20.0 | 213 | 255 | 60 | 32 | 3.2 | 10 |
| 14.00XM25-15 | 14.0 | 227 | 261 | 56 | 25 | 2.0 | 15 |
| 14.50XM25-15 | 14.5 | 227 | 262 | 56 | 25 | 2.0 | 15 |
| 15.00XM25-15 | 15.0 | 242 | 278 | 56 | 25 | 2.0 | 15 |
| 16.00xM25-15 | 16.0 | 257 | 294 | 56 | 25 | 2.2 | 15 |
| 16.50xM25-15 | 16.5 | 257 | 294 | 56 | 25 | 2.2 | 15 |
| 17.00xM25-15 | 17.0 | 272 | 310 | 56 | 25 | 2.2 | 15 |
| 17.50xM25-15 | 17.5 | 272 | 310 | 56 | 25 | 2.2 | 15 |
| 18.00xM25-15 | 18.0 | 288 | 327 | 56 | 25 | 3.0 | 15 |
| 18.50xM25-15 | 18.5 | 288 | 327 | 56 | 25 | 3.0 | 15 |
| 19.00xM25-15 | 19.0 | 303 | 343 | 56 | 25 | 3.0 | 15 |
| 19.50xM25-15 | 19.5 | 303 | 343 | 56 | 25 | 3.0 | 15 |
| 20.00xM32-15 | 20.0 | 318 | 360 | 60 | 32 | 3.2 | 15 |
| 21.00xM32-15 | 21.0 | 333 | 376 | 60 | 32 | 3.2 | 15 |
| 22.00xM32-15 | 22.0 | 348 | 393 | 60 | 32 | 3.4 | 15 |
| 23.00xM32-15 | 23.0 | 363 | 409 | 60 | 32 | 3.4 | 15 |
| 24.00xM32-15 | 24.0 | 378 | 426 | 60 | 32 | 3.4 | 15 |
| 25.00xM32-15 | 25.0 | 394 | 442 | 60 | 32 | 3.6 | 15 |
| 26.00xM40-15 | 26.0 | 409 | 449 | 70 | 40 | 3.6 | 15 |
| 27.00xM40-15 | 27.0 | 424 | 465 | 70 | 40 | 3.6 | 15 |
| 28.00xM40-15 | 28.0 | 424 | 467 | 70 | 40 | 3.6 | 15 |
| 14.00XM25-20 | 14.0 | 302 | 336 | 56 | 25 | 2.0 | 20 |
| 14.50XM25-20 | 14.5 | 302 | 337 | 56 | 25 | 2.0 | 20 |
| 15.00XM25-20 | 15.0 | 322 | 358 | 56 | 25 | 2.0 | 20 |
| 14.00XM25-25 | 14.0 | 377 | 411 | 56 | 25 | 2.0 | 25 |
| 14.50XM25-25 | 14.5 | 377 | 412 | 56 | 25 | 2.0 | 25 |
| 15.00XM25-25 | 15.0 | 402 | 438 | 56 | 25 | 2.0 | 25 |
| 16.00xM25-25 | 16.0 | 427 | 464 | 56 | 25 | 2.2 | 25 |
| 16.50xM25-25 | 16.5 | 427 | 464 | 56 | 25 | 2.2 | 25 |
| 17.00xM25-25 | 17.0 | 452 | 490 | 56 | 25 | 2.2 | 25 |
Комплектующие Условия • Направляющие пластины необходимо заказывать дополнительно • Доступно по запросу
