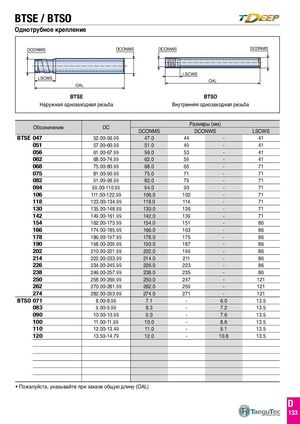

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 200
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
BTSE / BTSO
DCONWS DCONMS DCONWS DCONMS
LSCWS LSCWS OAL OAL BTSE BTSO Наружная однозаходная резьба Внутренняя однозаходная резьба
| Об | DC | Размер | ы(мм) | ||
| означение | DCONMS | DCO | NWS | LSCWS | |
| BTSE 047 | 52.00-56.99 | 47.0 | 44 | - | 41 |
| 051 | 57.00-60.99 | 51.0 | 49 | - | 41 |
| 056 | 61.00-67.99 | 56.0 | 53 | - | 41 |
| 062 | 68.00-74.99 | 62.0 | 59 | - | 41 |
| 068 | 75.00-80.99 | 68.0 | 65 | - | 71 |
| 075 | 81.00-90.99 | 75.0 | 71 | - | 71 |
| 082 | 91.00-98.99 | 82.0 | 79 | - | 71 |
| 094 | 99.00-110.99 | 94.0 | 90 | - | 71 |
| 106 | 111.00-122.99 | 106.0 | 102 | - | 71 |
| 118 | 123.00-134.99 | 118.0 | 114 | - | 71 |
| 130 | 135.00-148.99 | 130.0 | 126 | - | 71 |
| 142 | 149.00-161.99 | 142.0 | 139 | - | 71 |
| 154 | 162.00-173.99 | 154.0 | 151 | - | 86 |
| 166 | 174.00-185.99 | 166.0 | 163 | - | 86 |
| 178 | 186.00-197.99 | 178.0 | 175 | - | 86 |
| 190 | 198.00-209.99 | 190.0 | 187 | - | 86 |
| 202 | 210.00-221.99 | 202.0 | 199 | - | 86 |
| 214 | 222.00-233.99 | 214.0 | 211 | - | 86 |
| 226 | 234.00-245.99 | 226.0 | 223 | - | 86 |
| 238 | 246.00-257.99 | 238.0 | 235 | - | 86 |
| 250 | 258.00-269.99 | 250.0 | 247 | - | 121 |
| 262 | 270.00-281.99 | 262.0 | 259 | - | 121 |
| 274 | 282.00-293.99 | 274.0 | 271 | - | 121 |
| BTSO 071 | 8.00-8.99 | 7.1 | - | 6.0 | 13.5 |
| 083 | 9.00-9.99 | 8.3 | - | 7.2 | 13.5 |
| 090 | 10.00-10.99 | 9.0 | - | 7.6 | 13.5 |
| 100 | 11.00-11.99 | 10.0 | - | 8.6 | 13.5 |
| 110 | 12.00-13.49 | 11.0 | - | 9.1 | 13.5 |
| 120 | 13.50-14.79 | 12.0 | - | 10.8 | 13.5 |
