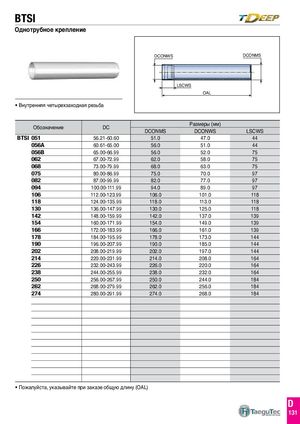

BTSI
DCONWS DCONMS
LSCWS OAL
- Внутренняя четырехзаходная резьба
| Обозначение | DC | Размеры(мм) | ||
| DCONMS | DCONWS | LSCWS | ||
| BTSI 051 | 56.21-60.60 | 51.0 | 47.0 | 44 |
| 056A | 60.61-65.00 | 56.0 | 51.0 | 44 |
| 056B | 65.00-66.99 | 56.0 | 52.0 | 75 |
| 062 | 67.00-72.99 | 62.0 | 58.0 | 75 |
| 068 | 73.00-79.99 | 68.0 | 63.0 | 75 |
| 075 | 80.00-86.99 | 75.0 | 70.0 | 97 |
| 082 | 87.00-99.99 | 82.0 | 77.0 | 97 |
| 094 | 100.00-111.99 | 94.0 | 89.0 | 97 |
| 106 | 112.00-123.99 | 106.0 | 101.0 | 118 |
| 118 | 124.00-135.99 | 118.0 | 113.0 | 118 |
| 130 | 136.00-147.99 | 130.0 | 125.0 | 118 |
| 142 | 148.00-159.99 | 142.0 | 137.0 | 139 |
| 154 | 160.00-171.99 | 154.0 | 149.0 | 139 |
| 166 | 172.00-183.99 | 166.0 | 161.0 | 139 |
| 178 | 184.00-195.99 | 178.0 | 173.0 | 144 |
| 190 | 196.00-207.99 | 190.0 | 185.0 | 144 |
| 202 | 208.00-219.99 | 202.0 | 197.0 | 144 |
| 214 | 220.00-231.99 | 214.0 | 208.0 | 164 |
| 226 | 232.00-243.99 | 226.0 | 220.0 | 164 |
| 238 | 244.00-255.99 | 238.0 | 232.0 | 164 |
| 250 | 256.00-267.99 | 250.0 | 244.0 | 184 |
| 262 | 268.00-279.99 | 262.0 | 256.0 | 184 |
| 274 | 280.00-291.99 | 274.0 | 268.0 | 184 |
