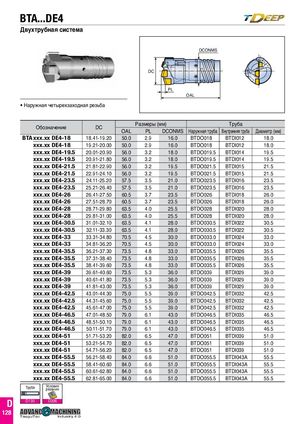

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 195
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
BTA...DE4
DC
- Наружная четырехзаходная резьба
PL
DCONMS
OAL
| Обозначение | DC | Р | азмеры | (мм) | Труба | ||
| OAL | PL | DCONMS | Наружная труба | Внутренняя труба | Диаметр (мм) | ||
| BTA xxx.xx DE4-18 | 18.41-19.20 | 50.0 | 2.9 | 16.0 | BTDO018 | BTDI012 | 18.0 |
| xxx.xx DE4-18 | 19.21-20.00 | 50.0 | 2.9 | 16.0 | BTDO018 | BTDI012 | 18.0 |
| xxx.xx DE4-19.5 | 20.01-20.90 | 56.0 | 3.2 | 18.0 | BTDO019.5 | BTDI014 | 19.5 |
| xxx.xx DE4-19.5 | 20.91-21.80 | 56.0 | 3.2 | 18.0 | BTDO019.5 | BTDI014 | 19.5 |
| xxx.xx DE4-21.5 | 21.81-22.90 | 56.0 | 3.2 | 19.5 | BTDO021.5 | BTDI015 | 21.5 |
| xxx.xx DE4-21.5 | 22.91-24.10 | 56.0 | 3.2 | 19.5 | BTDO021.5 | BTDI015 | 21.5 |
| xxx.xx DE4-23.5 | 24.11-25.20 | 57.5 | 3.5 | 21.0 | BTDO023.5 | BTDI016 | 23.5 |
| xxx.xx DE4-23.5 | 25.21-26.40 | 57.5 | 3.5 | 21.0 | BTDO023.5 | BTDI016 | 23.5 |
| xxx.xx DE4-26 | 26.41-27.50 | 60.5 | 3.7 | 23.5 | BTDO026 | BTDI018 | 26.0 |
| xxx.xx DE4-26 | 27.51-28.70 | 60.5 | 3.7 | 23.5 | BTDO026 | BTDI018 | 26.0 |
| xxx.xx DE4-28 | 28.71-29.80 | 63.5 | 4.0 | 25.5 | BTDO028 | BTDI020 | 28.0 |
| xxx.xx DE4-28 | 29.81-31.00 | 63.5 | 4.0 | 25.5 | BTDO028 | BTDI020 | 28.0 |
| xxx.xx DE4-30.5 | 31.01-32.10 | 63.5 | 4.1 | 28.0 | BTDO030.5 | BTDI022 | 30.5 |
| xxx.xx DE4-30.5 | 32.11-33.30 | 63.5 | 4.1 | 28.0 | BTDO030.5 | BTDI022 | 30.5 |
| xxx.xx DE4-33 | 33.31-34.80 | 70.5 | 4.5 | 30.0 | BTDO033.0 | BTDI024 | 33.0 |
| xxx.xx DE4-33 | 34.81-36.20 | 70.5 | 4.5 | 30.0 | BTDO033.0 | BTDI024 | 33.0 |
| xxx.xx DE4-35.5 | 36.21-37.30 | 73.5 | 4.8 | 33.0 | BTDO035.5 | BTDI026 | 35.5 |
| xxx.xx DE4-35.5 | 37.31-38.40 | 73.5 | 4.8 | 33.0 | BTDO035.5 | BTDI026 | 35.5 |
| xxx.xx DE4-35.5 | 38.41-39.60 | 73.5 | 4.8 | 33.0 | BTDO035.5 | BTDI026 | 35.5 |
| xxx.xx DE4-39 | 39.61-40.60 | 73.5 | 5.3 | 36.0 | BTDO039 | BTDI029 | 39.0 |
| xxx.xx DE4-39 | 40.61-41.80 | 73.5 | 5.3 | 36.0 | BTDO039 | BTDI029 | 39.0 |
| xxx.xx DE4-39 | 41.81-43.00 | 73.5 | 5.3 | 36.0 | BTDO039 | BTDI029 | 39.0 |
| xxx.xx DE4-42.5 | 43.01-44.30 | 75.0 | 5.5 | 39.0 | BTDO042.5 | BTDI032 | 42.5 |
| xxx.xx DE4-42.5 | 44.31-45.60 | 75.0 | 5.5 | 39.0 | BTDO042.5 | BTDI032 | 42.5 |
| xxx.xx DE4-42.5 | 45.61-47.00 | 75.0 | 5.5 | 39.0 | BTDO042.5 | BTDI032 | 42.5 |
| xxx.xx DE4-46.5 | 47.01-48.50 | 79.0 | 6.1 | 43.0 | BTDO046.5 | BTDI035 | 46.5 |
| xxx.xx DE4-46.5 | 48.51-50.10 | 79.0 | 6.1 | 43.0 | BTDO046.5 | BTDI035 | 46.5 |
| xxx.xx DE4-46.5 | 50.11-51.70 | 79.0 | 6.1 | 43.0 | BTDO046.5 | BTDI035 | 46.5 |
| xxx.xx DE4-51 | 51.71-53.20 | 82.0 | 6.5 | 47.0 | BTDO051 | BTDI039 | 51.0 |
| xxx.xx DE4-51 | 53.21-54.70 | 82.0 | 6.5 | 47.0 | BTDO051 | BTDI039 | 51.0 |
| xxx.xx DE4-51 | 54.71-56.20 | 82.0 | 6.5 | 47.0 | BTDO051 | BTDI039 | 51.0 |
| xxx.xx DE4-55.5 | 56.21-58.40 | 84.0 | 6.6 | 51.0 | BTDO055.5 | BTDI043A | 55.5 |
| xxx.xx DE4-55.5 | 58.41-60.60 | 84.0 | 6.6 | 51.0 | BTDO055.5 | BTDI043A | 55.5 |
| xxx.xx DE4-55.5 | 60.61-62.80 | 84.0 | 6.6 | 51.0 | BTDO055.5 | BTDI043A | 55.5 |
| xxx.xx DE4-55.5 | 62.81-65.00 | 84.0 | 6.6 | 51.0 | BTDO055.5 | BTDI043A | 55.5 |
