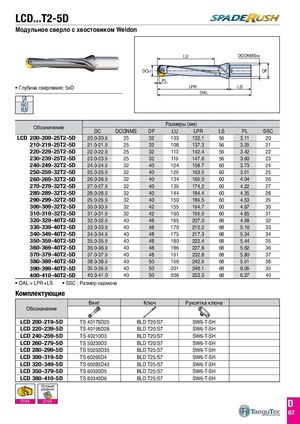

LU DCONMSh6 DCk7 DF PL
Глубина сверления: 5xD LPR LS
OAL
| Обозначение | Размеры | (мм) | ||||||
| DC | DCONMS | DF | LU | LPR | LS | PL | SSC | |
| LCD 200-209-25T2-5D | 20.0-20.9 | 25 | 32 | 103 | 132.1 | 56 | 3.11 | 20 |
| 210-219-25T2-5D | 21.0-21.9 | 25 | 32 | 108 | 137.3 | 56 | 3.29 | 21 |
| 220-229-25T2-5D | 22.0-22.9 | 25 | 32 | 113 | 142.4 | 56 | 3.42 | 22 |
| 230-239-25T2-5D | 23.0-23.9 | 25 | 32 | 119 | 147.6 | 56 | 3.60 | 23 |
| 240-249-32T2-5D | 24.0-24.9 | 32 | 40 | 124 | 158.7 | 60 | 3.73 | 24 |
| 250-259-32T2-5D | 25.0-25.9 | 32 | 40 | 129 | 163.9 | 60 | 3.91 | 25 |
| 260-269-32T2-5D | 26.0-26.9 | 32 | 40 | 134 | 169.0 | 60 | 4.04 | 26 |
| 270-279-32T2-5D | 27.0-27.9 | 32 | 40 | 139 | 174.2 | 60 | 4.22 | 27 |
| 280-289-32T2-5D | 28.0-28.9 | 32 | 40 | 144 | 184.4 | 60 | 4.35 | 28 |
| 290-299-32T2-5D | 29.0-29.9 | 32 | 40 | 150 | 189.5 | 60 | 4.53 | 29 |
| 300-309-32T2-5D | 30.0-30.9 | 32 | 42 | 155 | 194.7 | 60 | 4.67 | 30 |
| 310-319-32T2-5D | 31.0-31.9 | 32 | 42 | 160 | 199.9 | 60 | 4.85 | 31 |
| 320-329-40T2-5D | 32.0-32.9 | 40 | 48 | 165 | 207.0 | 68 | 4.98 | 32 |
| 330-339-40T2-5D | 33.0-33.9 | 40 | 48 | 170 | 212.2 | 68 | 5.16 | 33 |
| 340-349-40T2-5D | 34.0-34.9 | 40 | 48 | 175 | 217.3 | 68 | 5.34 | 34 |
| 350-359-40T2-5D | 35.0-35.9 | 40 | 48 | 180 | 222.4 | 68 | 5.44 | 35 |
| 360-369-40T2-5D | 36.0-36.9 | 40 | 48 | 186 | 227.6 | 68 | 5.62 | 36 |
| 370-379-40T2-5D | 37.0-37.9 | 40 | 48 | 191 | 232.8 | 68 | 5.80 | 37 |
| 380-389-40T2-5D | 38.0-38.9 | 40 | 50 | 196 | 242.9 | 68 | 5.91 | 38 |
| 390-399-40T2-5D | 39.0-39.9 | 40 | 50 | 201 | 248.1 | 68 | 6.09 | 39 |
| 400-410-40T2-5D | 40.0-41.0 | 40 | 50 | 206 | 253.3 | 68 | 6.27 | 40 |
- OAL = LPR+LS
- SSC : Размер кармана
Комплектующие
| Винт | Ключ | Рукоятка ключа | |
| Обозначение | |||
| LCD 200-219-5D | TS 40178D25 | BLD T20/S7 | SW6-T-SH |
| LCD 220-239-5D | TS 40198D28 | BLD T20/S7 | SW6-T-SH |
| LCD 240-259-5D | TS 40210D3 | BLD T20/S7 | SW6-T-SH |
| LCD 260-279-5D | TS 50230D3 | BLD T20/S7 | SW6-T-SH |
| LCD 280-299-5D | TS 50250D35 | BLD T25/S7 | SW6-T-SH |
| LCD 300-319-5D | TS 60265D4 | BLD T25/S7 | SW6-T-SH |
| LCD 320-349-5D | TS 60285D42 | BLD T25/S7 | SW6-T-SH |
| LCD 350-379-5D | TS 60320D5 | BLD T25/S7 | SW6-T-SH |
| LCD 380-410-5D | TS 80340D6 | BLD T25/S7 | SW6-T-SH |
| Условия резания D194 D164 |
