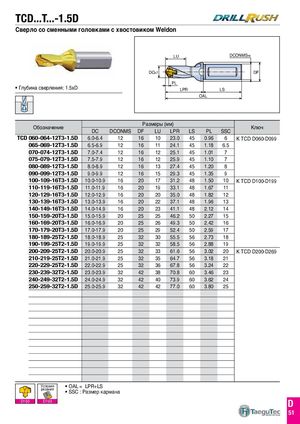

TCD...T...-1.5D
LU DCONMSh6 DC k7 DF PL
Глубина сверления: 1.5xD LPR LS
OAL
| Обозначение | Ра | змеры( | мм) | Ключ | |||||
| DC | DCONMS | DF | LU | LPR | LS | PL | SSC | ||
| TCD060-064-12T3-1.5D | 6.0-6.4 | 12 | 16 | 10 | 23.0 | 45 | 0.96 | 6 | K TCD D060-D099 |
| 065-069-12T3-1.5D | 6.5-6.9 | 12 | 16 | 11 | 24.1 | 45 | 1.18 | 6.5 | |
| 070-074-12T3-1.5D | 7.0-7.4 | 12 | 16 | 12 | 25.1 | 45 | 1.01 | 7 | |
| 075-079-12T3-1.5D | 7.5-7.9 | 12 | 16 | 12 | 25.9 | 45 | 1.10 | 7 | |
| 080-089-12T3-1.5D | 8.0-8.9 | 12 | 16 | 13 | 27.4 | 45 | 1.20 | 8 | |
| 090-099-12T3-1.5D | 9.0-9.9 | 12 | 16 | 15 | 29.3 | 45 | 1.35 | 9 | |
| 100-109-16T3-1.5D | 10.0-10.9 | 16 | 20 | 17 | 31.2 | 48 | 1.50 | 10 | K TCD D100-D199 |
| 110-119-16T3-1.5D | 11.0-11.9 | 16 | 20 | 19 | 33.1 | 48 | 1.67 | 11 | |
| 120-129-16T3-1.5D | 12.0-12.9 | 16 | 20 | 20 | 35.0 | 48 | 1.82 | 12 | |
| 130-139-16T3-1.5D | 13.0-13.9 | 16 | 20 | 22 | 37.1 | 48 | 1.96 | 13 | |
| 140-149-16T3-1.5D | 14.0-14.9 | 16 | 20 | 23 | 41.1 | 48 | 2.12 | 14 | |
| 150-159-20T3-1.5D | 15.0-15.9 | 20 | 25 | 25 | 46.2 | 50 | 2.27 | 15 | |
| 160-169-20T3-1.5D | 16.0-16.9 | 20 | 25 | 26 | 49.3 | 50 | 2.42 | 16 | |
| 170-179-20T3-1.5D | 17.0-17.9 | 20 | 25 | 29 | 52.4 | 50 | 2.59 | 17 | |
| 180-189-25T2-1.5D | 18.0-18.9 | 25 | 32 | 30 | 55.5 | 56 | 2.73 | 18 | |
| 190-199-25T2-1.5D | 19.0-19.9 | 25 | 32 | 32 | 58.5 | 56 | 2.88 | 19 | |
