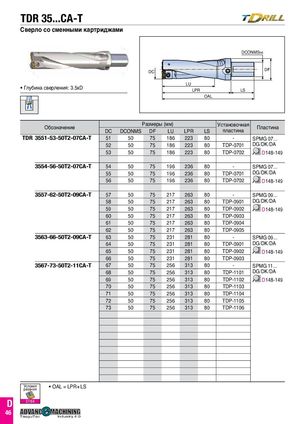

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 113
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DCONMSh6
DC DF LU
- Глубина сверления: 3.5xD
LPR LS OAL
| Об | Р | азмеры | (мм) | Установочная | П | |||
| означение | DC | DCONMS | DF | LU | LPR | LS | пластина | ластина |
| TDR 3551-53-50T2-07CA-T | 51 | 50 | 75 | 186 | 223 | 80 | - | SPMG 07... |
| 52 | 50 | 75 | 186 | 223 | 80 | TDP-0701 | DG/DK/DA | |
| 53 | 50 | 75 | 186 | 223 | 80 | TDP-0702 | D148-149 | |
| 3554-56-50T2-07CA-T | 54 | 50 | 75 | 196 | 236 | 80 | - | SPMG 07... |
| 55 | 50 | 75 | 196 | 236 | 80 | TDP-0701 | DG/DK/DA | |
| 56 | 50 | 75 | 196 | 236 | 80 | TDP-0702 | D148-149 | |
| 3557-62-50T2-09CA-T | 57 | 50 | 75 | 217 | 263 | 80 | - | SPMG 09... |
| 58 | 50 | 75 | 217 | 263 | 80 | TDP-0901 | DG/DK/DA | |
| 59 | 50 | 75 | 217 | 263 | 80 | TDP-0902 | D148-149 | |
| 60 | 50 | 75 | 217 | 263 | 80 | TDP-0903 | ||
| 61 | 50 | 75 | 217 | 263 | 80 | TDP-0904 | ||
| 62 | 50 | 75 | 217 | 263 | 80 | TDP-0905 | ||
| 3563-66-50T2-09CA-T | 63 | 50 | 75 | 231 | 281 | 80 | - | SPMG 09... |
| 64 | 50 | 75 | 231 | 281 | 80 | TDP-0901 | DG/DK/DA | |
| 65 | 50 | 75 | 231 | 281 | 80 | TDP-0902 | D148-149 | |
| 66 | 50 | 75 | 231 | 281 | 80 | TDP-0903 | ||
| 3567-73-50T2-11CA-T | 67 | 50 | 75 | 256 | 313 | 80 | - | SPMG 11... |
| 68 | 50 | 75 | 256 | 313 | 80 | TDP-1101 | DG/DK/DA | |
| 69 | 50 | 75 | 256 | 313 | 80 | TDP-1102 | D148-149 | |
| 70 | 50 | 75 | 256 | 313 | 80 | TDP-1103 | ||
| 71 | 50 | 75 | 256 | 313 | 80 | TDP-1104 | ||
| 72 | 50 | 75 | 256 | 313 | 80 | TDP-1105 | ||
| 73 | 50 | 75 | 256 | 313 | 80 | TDP-1106 |
