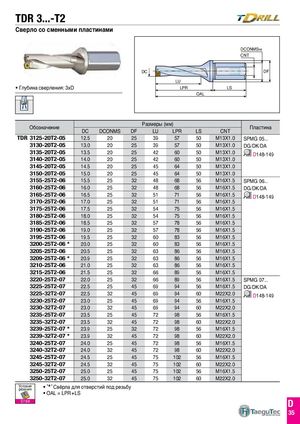

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 102
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC LU
Глубина сверления: 3xD LPR LS
OAL
DCONMSh6 CNT DF
| Обозначение | DC | DCONMS | DF | Размеры( LU | мм) LPR | LS | CNT | Пластина |
| TDR 3125-20T2-05 | 12.5 | 20 | 25 | 39 | 57 | 50 | M13X1.0 | SPMG 05... |
| 3130-20T2-05 | 13.0 | 20 | 25 | 39 | 57 | 50 | M13X1.0 | DG/DK/DA |
| 3135-20T2-05 | 13.5 | 20 | 25 | 42 | 60 | 50 | M13X1.0 | D148-149 |
| 3140-20T2-05 | 14.0 | 20 | 25 | 42 | 60 | 50 | M13X1.0 | |
| 3145-20T2-05 | 14.5 | 20 | 25 | 45 | 64 | 50 | M13X1.0 | |
| 3150-20T2-05 | 15.0 | 20 | 25 | 45 | 64 | 50 | M13X1.0 | |
| 3155-25T2-06 | 15.5 | 25 | 32 | 48 | 68 | 56 | M16X1.5 | SPMG 06... |
| 3160-25T2-06 | 16.0 | 25 | 32 | 48 | 68 | 56 | M16X1.5 | DG/DK/DA |
| 3165-25T2-06 | 16.5 | 25 | 32 | 51 | 71 | 56 | M16X1.5 | D148-149 |
| 3170-25T2-06 | 17.0 | 25 | 32 | 51 | 71 | 56 | M16X1.5 | |
| 3175-25T2-06 | 17.5 | 25 | 32 | 54 | 75 | 56 | M16X1.5 | |
| 3180-25T2-06 | 18.0 | 25 | 32 | 54 | 75 | 56 | M16X1.5 | |
| 3185-25T2-06 | 18.5 | 25 | 32 | 57 | 78 | 56 | M16X1.5 | |
| 3190-25T2-06 | 19.0 | 25 | 32 | 57 | 78 | 56 | M16X1.5 | |
| 3195-25T2-06 | 19.5 | 25 | 32 | 60 | 83 | 56 | M16X1.5 | |
| 3200-25T2-06 | 20.0 | 25 | 32 | 60 | 83 | 56 | M16X1.5 | |
| 3205-25T2-06 | 20.5 | 25 | 32 | 63 | 86 | 56 | M16X1.5 | |
| 3209-25T2-06 | 20.9 | 25 | 32 | 63 | 86 | 56 | M16X1.5 | |
| 3210-25T2-06 | 21.0 | 25 | 32 | 63 | 86 | 56 | M16X1.5 | |
| 3215-25T2-06 | 21.5 | 25 | 32 | 66 | 89 | 56 | M16X1.5 | |
| 3220-25T2-07 | 22.0 | 25 | 32 | 66 | 89 | 56 | M16X1.5 | SPMG 07... |
| 3225-25T2-07 | 22.5 | 25 | 45 | 69 | 94 | 56 | M16X1.5 | DG/DK/DA |
| 3225-32T2-07 | 22.5 | 32 | 45 | 69 | 94 | 60 | M22X2.0 | D148-149 |
| 3230-25T2-07 | 23.0 | 25 | 45 | 69 | 94 | 56 | M16X1.5 | |
| 3230-32T2-07 | 23.0 | 32 | 45 | 69 | 94 | 60 | M22X2.0 | |
| 3235-25T2-07 | 23.5 | 25 | 45 | 72 | 98 | 56 | M16X1.5 | |
| 3235-32T2-07 | 23.5 | 32 | 45 | 72 | 98 | 60 | M22X2.0 | |
| 3239-25T2-07 | 23.9 | 25 | 32 | 72 | 98 | 56 | M16X1.5 | |
| 3239-32T2-07 | 23.9 | 32 | 45 | 72 | 98 | 60 | M22X2.0 | |
| 3240-25T2-07 | 24.0 | 25 | 45 | 72 | 98 | 56 | M16X1.5 | |
| 3240-32T2-07 | 24.0 | 32 | 45 | 72 | 98 | 60 | M22X2.0 | |
| 3245-25T2-07 | 24.5 | 25 | 45 | 75 | 102 | 56 | M16X1.5 | |
| 3245-32T2-07 | 24.5 | 32 | 45 | 75 | 102 | 60 | M22X2.0 | |
| 3250-25T2-07 | 25.0 | 25 | 45 | 75 | 102 | 56 | M16X1.5 | |
| 3250-32T2-07 | 25.0 | 32 | 45 | 75 | 102 | 60 | M22X2.0 |
3250-32T2-07⁎ 25.0 32 45 75 102 60 M22X2.0
