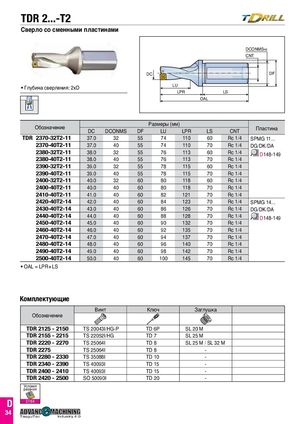

Каталог TaeguTec вращающиеся инструменты 2020 - 2021 - страница 101
Навигация
Каталог TaeguTec токарные инструменты 2020 - 2021
DC
- Глубина сверления: 2xD LU
LPR LS OAL
DCONMSh6 CNT
DF
| Обозначение | Р | азмеры(м | м) | П | ||||
| DC | DCONMS | DF | LU | LPR | LS | CNT | ластина | |
| TDR 2370-32T2-11 | 37.0 | 32 | 55 | 74 | 110 | 60 | Rc 1/4 | SPMG 11... |
| 2370-40T2-11 | 37.0 | 40 | 55 | 74 | 110 | 70 | Rc 1/4 | DG/DK/DA |
| 2380-32T2-11 | 38.0 | 32 | 55 | 76 | 113 | 60 | Rc 1/4 | D148-149 |
| 2380-40T2-11 | 38.0 | 40 | 55 | 76 | 113 | 70 | Rc 1/4 | |
| 2390-32T2-11 | 39.0 | 32 | 55 | 78 | 115 | 60 | Rc 1/4 | |
| 2390-40T2-11 | 39.0 | 40 | 55 | 78 | 115 | 70 | Rc 1/4 | |
| 2400-32T2-11 | 40.0 | 32 | 60 | 80 | 118 | 60 | Rc 1/4 | |
| 2400-40T2-11 | 40.0 | 40 | 60 | 80 | 118 | 70 | Rc 1/4 | |
| 2410-40T2-11 | 41.0 | 40 | 60 | 82 | 121 | 70 | Rc 1/4 | |
| 2420-40T2-14 | 42.0 | 40 | 60 | 84 | 123 | 70 | Rc 1/4 | SPMG 14... |
| 2430-40T2-14 | 43.0 | 40 | 60 | 86 | 126 | 70 | Rc 1/4 | DG/DK/DA |
| 2440-40T2-14 | 44.0 | 40 | 60 | 88 | 128 | 70 | Rc 1/4 | D148-149 |
| 2450-40T2-14 | 45.0 | 40 | 60 | 90 | 132 | 70 | Rc 1/4 | |
| 2460-40T2-14 | 46.0 | 40 | 60 | 92 | 135 | 70 | Rc 1/4 | |
| 2470-40T2-14 | 47.0 | 40 | 60 | 94 | 137 | 70 | Rc 1/4 | |
| 2480-40T2-14 | 48.0 | 40 | 60 | 96 | 140 | 70 | Rc 1/4 | |
| 2490-40T2-14 | 49.0 | 40 | 60 | 98 | 142 | 70 | Rc 1/4 | |
| 2500-40T2-14 | 50.0 | 40 | 60 | 100 | 145 | 70 | Rc 1/4 |
- OAL = LPR+LS
Комплектующие
| Винт | Ключ | Заглушка | |
| Обозначение | |||
| TDR 2125- 2150 | TS 20043I/HG-P | TD 6P | SL 20 M |
| TDR 2155- 2215 | TS 22052I/HG | TD 7 | SL 25 M |
| TDR 2220- 2270 | TS 25064I | TD 8 | SL 25 M / SL 32 M |
| TDR 2275 | TS 25064I | TD 8 | - |
| TDR 2280- 2330 | TS 35088I | TD 10 | - |
| TDR 2340- 2390 | TS 40093I | TD 15 | - |
| TDR 2400- 2410 | TS 40093I | TD 15 | - |
| TDR 2420 - 2500 | SO 50090I | TD 20 | - |
