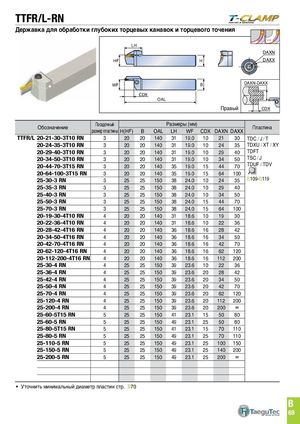

Каталог TaeguTec токарные инструменты 2020 - 2021 - страница 432
Навигация
Каталог TaeguTec вращающиеся инструменты 2020 - 2021
TTFR/L-RN
LH dAXN
HF H dAXX
WF B DAXN-DAXX
CDX OAL Правый CDX
| Об | Посадочный | Разме | ры(мм) | П | ||||||
| означение | размерпластины | H(Hf) | B | OAL | LH | WF | CDX | dAXN | dAXX | ластина |
| TTFR/L 20-21-30-3T10 RN | 3 | 20 | 20 | 140 | 31 | 19.0 | 10 | 21 | 30 | tdC / J / t |
| 20-24-35-3T10 RN | 3 | 20 | 20 | 140 | 31 | 19.0 | 10 | 24 | 35 | tdXu / Xt / XY |
| 20-29-40-3T10 RN | 3 | 20 | 20 | 140 | 31 | 19.0 | 10 | 29 | 40 | TDFT |
| 20-34-50-3T10 RN | 3 | 20 | 20 | 140 | 31 | 19.0 | 10 | 34 | 50 | TSC / J |
| 20-44-70-3T15 RN | 3 | 20 | 20 | 140 | 35 | 19.0 | 15 | 44 | 70 | tduf / tdV |
| 20-64-100-3T15 RN | 3 | 20 | 20 | 140 | 35 | 19.0 | 15 | 64 | 100 | |
| 25-30-3 RN | 3 | 25 | 25 | 150 | 38 | 24.0 | 10 | 24 | 35 | B109-B119 |
| 25-35-3 RN | 3 | 25 | 25 | 150 | 38 | 24.0 | 10 | 29 | 40 | |
| 25-40-3 RN | 3 | 25 | 25 | 150 | 38 | 24.0 | 10 | 34 | 50 | |
| 25-50-3 RN | 3 | 25 | 25 | 150 | 38 | 24.0 | 15 | 44 | 70 | |
| 25-70-3 RN | 3 | 25 | 25 | 150 | 38 | 24.0 | 15 | 64 | 100 | |
| 20-19-30-4T10 RN | 4 | 20 | 20 | 140 | 31 | 18.6 | 10 | 19 | 30 | |
| 20-22-36-4T10 RN | 4 | 20 | 20 | 140 | 31 | 18.6 | 10 | 22 | 36 | |
| 20-28-42-4T16 RN | 4 | 20 | 20 | 140 | 36 | 18.6 | 16 | 28 | 42 | |
| 20-34-50-4T16 RN | 4 | 20 | 20 | 140 | 36 | 18.6 | 16 | 34 | 50 | |
| 20-42-70-4T16 RN | 4 | 20 | 20 | 140 | 36 | 18.6 | 16 | 42 | 70 | |
| 20-62-120-4T16 RN | 4 | 20 | 20 | 140 | 36 | 18.6 | 16 | 62 | 120 | |
| 20-112-200-4T16 RN | 4 | 20 | 20 | 140 | 36 | 18.6 | 16 | 112 | 200 | |
| 25-30-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 10 | 22 | 36 | |
| 25-36-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 28 | 42 | |
| 25-42-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 34 | 50 | |
| 25-50-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 42 | 70 | |
| 25-70-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 62 | 120 | |
| 25-120-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 112 | 200 | |
| 25-200-4 RN | 4 | 25 | 25 | 150 | 39 | 23.6 | 20 | 200 | ∞ | |
| 25-60-5T15 RN | 5 | 25 | 25 | 150 | 41 | 23.1 | 15 | 50 | 80 | |
| 25-60-5 RN | 5 | 25 | 25 | 150 | 49 | 23.1 | 25 | 50 | 80 | |
| 25-80-5T15 RN | 5 | 25 | 25 | 150 | 41 | 23.1 | 15 | 70 | 110 | |
| 25-80-5 RN | 5 | 25 | 25 | 150 | 49 | 23.1 | 25 | 70 | 110 | |
| 25-110-5 RN | 5 | 25 | 25 | 150 | 49 | 23.1 | 25 | 100 | 150 | |
| 25-150-5 RN | 5 | 25 | 25 | 150 | 49 | 23.1 | 25 | 140 | 200 | |
| 25-200-5 RN | 5 | 25 | 25 | 150 | 49 | 23.1 | 25 | 200 | ∞ |
- Уточнить минимальный диаметр пластин стр. B70
