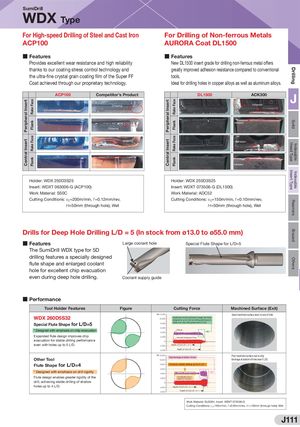

Peripheral InsertCentral Insert Rake FaceFlankRake FaceFlank Peripheral InsertCentral Insert Rake FaceFlankRake FaceFlank OthersBrazedReamersIndexableIndexableInsert TypeHead TypeSolidDrilling SumiDrill WDX Type For High-speed Drilling of Steel and Cast Iron For Drilling of Non-ferrous Metals ACP100 AURORA Coat DL1500 ■ Features  ■ Features  Provides excellent wear resistance and high reliability New DL1500 insert grade for drilling non-ferrous metal offers thanks to our coating stress control technology and greatly improved adhesion resistance compared to conventional the ultra-fine crystal grain coating film of the Super FF tools. Coat achieved through our proprietary technology. Ideal for drilling holes in copper alloys as well as aluminum alloys. ACP100 Competitor's Product DL1500 ACK300 J Chipping Adhesion Adhesion Chipping Chipping Adhesion Chipping Adhesion Holder: WDX 250D3S25 Holder: WDX 250D3S25 Insert: WDXT 063006-G (ACP100) Insert: WDXT 073506-G (DL1500) Work Material: S50C Work Material: ADC52 Cutting Conditions: v c=200m/min, f =0.12mm/rev, Cutting Conditions: v c=150m/min, f =0.10mm/rev, H=50mm (through hole), Wet H=50mm (through hole), Wet Drills for Deep Hole Drilling L/D = 5 (In stock from ø13.0 to ø55.0 mm) ■ Features  Large coolant hole Special Flute Shape for L/D=5 The SumiDrill WDX type for 5D drilling features a specially designed flute shape and enlarged coolant hole for excellent chip evacuation even during deep hole drilling. Coolant supply guide ■ Performance Tool Holder Features Figure Cutting Force Machined Surface (Exit) (N) 12,000 Good machined surface down to end of hole WDX 260D5S32 Amplitude in the thrust direction is larger than flutes10,000designed for up to 4 L/D, but drilling performance is Special Flute Shape for L/D=5 8,000 stable even when drilling deep holes of 5 L/D. 6,000 * Designed with emphasis on chip evacuation Thrust 4,000 Expanded flute design improves chip 2,000 Horizontal Component of Force evacuation for stable drilling performance 0 even with holes up to 5 L/D. -2,000 Depth of Cut L/D = 4 -4,000 Depth of Cut L/D = 5 Other Tool (N) 12,000 Chip blockage at bottom of hole Poor machined surface due to chip10,000blockage at bottom of hole (near 5 L/D) Flute Shape for L/D=4 8,000 However, stable drilling up to 4 L/D 6,000 * Designed with emphasis on drill rigidity 4,000 Flute design enables greater rigidity of the Strong rigidity allows only minute2,000amplitude in the thrust direction drill, achieving stable drilling of shallow 0 holes up to 4 L/D. -2,000 Depth of Cut L/D = 4 Depth of Cut L/D = 5 -4,000 Work Material: SUS304, Insert: WDXT 073506-G Cutting Conditions: vc=150m/min, f =0.05mm/rev, H =130mm (through hole), Wet J111
