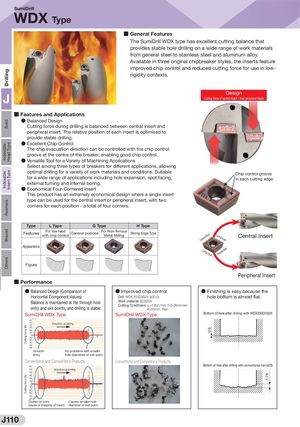

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers Cutting force (N)Cutting force (N) 0.6 1.79 SumiDrill WDX Type ■ General Features The SumiDrill WDX type has excellent cutting balance that provides stable hole drilling on a wide range of work materials from general steel to stainless steel and aluminum alloy. Available in three original chipbreaker styles, the inserts feature improved chip control and reduced cutting force for use in low- rigidity contexts. J DesignCutting force of central insert ≈ that peripheral blade ■ Features and Applications ● Balanced Design Cutting force during drilling is balanced between central insert and Central Insert peripheral insert. The relative position of each insert is optimised to provide stable drilling. Peripheral Insert ● Excellent Chip Control The chip evacuation direction can be controlled with the chip control groove at the centre of the breaker, enabling good chip control. ● Versatile Tool for a Variety of Machining Applications Select among three types of breakers for different applications, allowing optimal drilling for a variety of work materials and conditions. Suitable Chip control groove for a wide range of applications including hole expansion, spot facing, in each cutting edge external turning and internal boring. ● Economical Four-Cornered Insert This product has an extremely economical design where a single insert type can be used for the central insert or peripheral insert, with two corners for each position - a total of four corners. Type L Type G Type H Type Features For low feedwith chip controlGeneral-purpose For Non-ferrousMetal MillingStrong Edge Type Peripheral Blade Central Insert Central Insert Appearance Central Insert Peripheral Blade Figure Peripheral Insert ■ Performance ● Balanced Design (Comparison of ● Improved chip control ● Finishing is easy because the Horizontal Component Values) Drill: WDX 200D3S25 (ø20.0) hole bottom is almost flat. Balance is maintained at the through hole Work material: SUS304 entry and exit points, and drilling is stable. Cutting Conditions: vc=130m/min, f=0.06mm/revH=50mm, Wet SumiDrill WDX Type SumiDrill WDX Type Bottom of hole after drilling with WDX200D3S25 Direction of drilling Smooth No problems with smaller entry hole diameters at exit point Conventional and Competitor's Products Conventional and Competitor's Products Bottom of hole after drilling with conventional tool (ø20) Direction of drilling Chatter on entry Causes smaller hole (cause of chipping of insert) diameter at exit point J110
