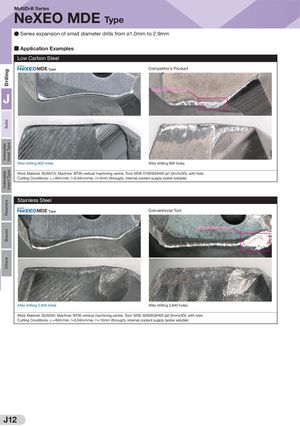

DrillingSolidIndexableIndexableHead TypeInsert TypeReamersBrazedOthers MultiDrill Series NeXEO MDE Type ● Series expansion of small diameter drills from ø1.0mm to 2.9mm ■ Application Examples Low Carbon Steel MDE Type Competitor's Product Large adhesion wear J After drilling 900 holes After drilling 900 holes Work Material: SCM415, Machine: BT30 vertical machining centre, Tool: MDE 0100S03H05 (ø1.0mmx5D), with hole Cutting Conditions: vc=40m/min, f=0.04mm/rev, H=5mm (through), internal coolant supply (water soluble) Stainless Steel MDE Type Conventional Tool Large adhesion wear After drilling 3,840 holes After drilling 3,840 holes Work Material: SUS304, Machine: BT30 vertical machining centre, Tool: MDE 0200S03H05 (ø2.0mmx5D), with hole Cutting Conditions: vc=40m/min, f=0.04mm/rev, H=10mm (through), internal coolant supply (water soluble) J12
