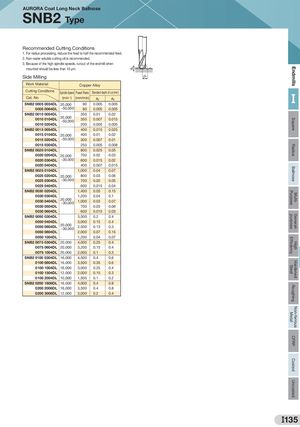

ap UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills AURORA Coat Long Neck Ballnose SNB2 Type Recommended Cutting Conditions 1. For radius processing, reduce the feed to half the recommended feed. 2. Non-water soluble cutting oil is recommended. 3. ‌B ecause of the high spindle speeds, runout of the endmill when mounted should be less than 10 μm. Side Milling pf Work Material Copper Alloy Cutting Conditions Spindle Speed Feed Rate Standard depth of cut (mm) Cat. No. (min-1) (mm/min) ap ae I SNB2 0005 0034DL 20,000 90 0.005 0.005 0005 0064DL -50,000 80 0.005 0.005 SNB2 0010 0054DL 350 0.01 0.02 0010 0104DL 20,000-50,000 350 0.007 0.015 0010 0204DL 200 0.005 0.005 SNB2 0015 0054DL 400 0.015 0.025 0015 0104DL 20,000 400 0.01 0.02 0015 0204DL -50,000 300 0.007 0.01 0015 0304DL 250 0.005 0.008 SNB2 0020 0104DL 800 0.025 0.05 0020 0204DL 20,000 700 0.02 0.03 0020 0304DL -30,000 600 0.015 0.02 0020 0404DL 400 0.007 0.015 SNB2 0025 0104DL 1,000 0.04 0.07 0025 0204DL 20,000 800 0.03 0.06 0025 0304DL -30,000 700 0.02 0.05 0025 0404DL 600 0.015 0.04 SNB2 0030 0204DL 1,400 0.05 0.15 0030 0304DL 1,200 0.04 0.1 0030 0404DL 20,000-30,000 1,000 0.03 0.07 0030 0504DL 700 0.03 0.06 0030 0604DL 600 0.015 0.03 SNB2 0050 0304DL 3,500 0.2 0.4 0050 0404DL 3,000 0.15 0.4 0050 0604DL 20,000-30,000 2,500 0.13 0.3 0050 0804DL 2,000 0.07 0.15 0050 1004DL 1,200 0.04 0.07 SNB2 0075 0304DL 20,000 4,000 0.25 0.4 0075 0604DL 20,000 3,200 0.15 0.4 0075 1004DL 20,000 2,000 0.1 0.3 SNB2 0100 0304DL 16,000 4,500 0.4 0.6 0100 0604DL 16,000 3,500 0.35 0.6 0100 1004DL 16,000 3,000 0.25 0.4 0100 1504DL 12,000 2,000 0.15 0.3 0100 2004DL 10,000 1,500 0.1 0.2 SNB2 0200 1606DL 16,000 4,000 0.4 0.8 0200 2006DL 16,000 3,500 0.4 0.8 0200 3006DL 12,000 3,000 0.2 0.4 I135
