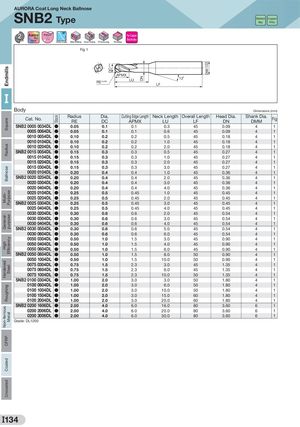

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated Stock ±0.01 DC DN +0.0000 DMM -0.0050 AURORA Coat Long Neck Ballnose SNB2 Type Aluminum CopperAlloyAlloy Aurora Ballnose For Copper Flutes Coat ElectrodesHelix AngleSide MillingGroove FinishingR-GroovingProfiling Fig 1 APMX RE±0.005 LU 12˚ LF I Body Dimensions (mm) Cat. No. RadiusRE Dia.DC Cutting Edge Length Neck Length Overall Length Head Dia.APMXLULFDNShank Dia.DMM Fig SNB2 0005 0034DL ● 0.05 0.1 0.1 0.3 45 0.09 4 1 SNB2 0005 0064DL ● 0.05 0.1 0.1 0.6 45 0.09 4 1 SNB2 0010 0054DL ● 0.10 0.2 0.2 0.5 45 0.18 4 1 SNB2 0010 0104DL ● 0.10 0.2 0.2 1.0 45 0.18 4 1 SNB2 0010 0204DL ● 0.10 0.2 0.2 2.0 45 0.18 4 1 SNB2 0015 0054DL ● 0.15 0.3 0.3 0.5 45 0.27 4 1 SNB2 0015 0104DL ● 0.15 0.3 0.3 1.0 45 0.27 4 1 SNB2 0015 0204DL ● 0.15 0.3 0.3 2.0 45 0.27 4 1 SNB2 0015 0304DL ● 0.15 0.3 0.3 3.0 45 0.27 4 1 SNB2 0020 0104DL ● 0.20 0.4 0.4 1.0 45 0.36 4 1 SNB2 0020 0204DL ● 0.20 0.4 0.4 2.0 45 0.36 4 1 SNB2 0020 0304DL ● 0.20 0.4 0.4 3.0 45 0.36 4 1 SNB2 0020 0404DL ● 0.20 0.4 0.4 4.0 45 0.36 4 1 SNB2 0025 0104DL ● 0.25 0.5 0.45 1.0 45 0.45 4 1 SNB2 0025 0204DL ● 0.25 0.5 0.45 2.0 45 0.45 4 1 SNB2 0025 0304DL ● 0.25 0.5 0.45 3.0 45 0.45 4 1 SNB2 0025 0404DL ● 0.25 0.5 0.45 4.0 45 0.45 4 1 SNB2 0030 0204DL ● 0.30 0.6 0.6 2.0 45 0.54 4 1 SNB2 0030 0304DL ● 0.30 0.6 0.6 3.0 45 0.54 4 1 SNB2 0030 0404DL ● 0.30 0.6 0.6 4.0 45 0.54 4 1 SNB2 0030 0504DL ● 0.30 0.6 0.6 5.0 45 0.54 4 1 SNB2 0030 0604DL ● 0.30 0.6 0.6 6.0 45 0.54 4 1 SNB2 0050 0304DL ● 0.50 1.0 1.5 3.0 45 0.90 4 1 SNB2 0050 0404DL ● 0.50 1.0 1.5 4.0 45 0.90 4 1 SNB2 0050 0604DL ● 0.50 1.0 1.5 6.0 45 0.90 4 1 SNB2 0050 0804DL ● 0.50 1.0 1.5 8.0 50 0.90 4 1 SNB2 0050 1004DL ● 0.50 1.0 1.5 10.0 50 0.90 4 1 SNB2 0075 0304DL ● 0.75 1.5 2.3 3.0 45 1.35 4 1 SNB2 0075 0604DL ● 0.75 1.5 2.3 6.0 45 1.35 4 1 SNB2 0075 1004DL ● 0.75 1.5 2.3 10.0 50 1.35 4 1 SNB2 0100 0304DL ● 1.00 2.0 3.0 3.0 50 1.80 4 1 SNB2 0100 0604DL ● 1.00 2.0 3.0 6.0 50 1.80 4 1 SNB2 0100 1004DL ● 1.00 2.0 3.0 10.0 50 1.80 4 1 SNB2 0100 1504DL ● 1.00 2.0 3.0 15.0 60 1.80 4 1 SNB2 0100 2004DL ● 1.00 2.0 3.0 20.0 60 1.80 4 1 SNB2 0200 1606DL ● 2.00 4.0 6.0 16.0 80 3.60 6 1 SNB2 0200 2006DL ● 2.00 4.0 6.0 20.0 80 3.60 6 1 SNB2 0200 3006DL ● 2.00 4.0 6.0 30.0 80 3.60 6 1 Grade: DL1200 I134
