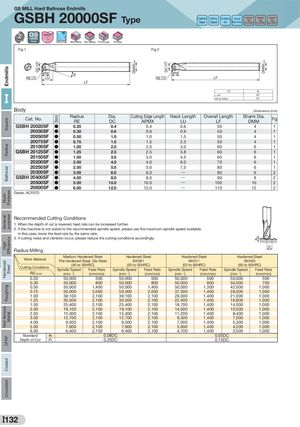

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated +0.006 DC -0.014 Stock 0 DMM -0.005 +0.006 DC -0.014 ap 0 DMM -0.005 GS MILL Hard Ballnose Endmills GSBH 20000SF Type CarbonSteelAlloySteel Pre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCHardenedSteel60 to 65HRC Ballnose Flutes Coat Helix Angle Side Milling Face Milling R-Grooving Profiling Fig 1 Fig 2 APMX θ APMX RE+0.003 -0.007 LU RE+0.003 -0.007 LF LF DC θ I < ø2 10°ø2 or more15° Body Dimensions (mm) Cat. No. RadiusRE Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig GSBH 20020SF ● 0.20 0.4 0.4 0.6 50 4 1 GSBH 20030SF ● 0.30 0.6 0.6 0.9 50 4 1 GSBH 20050SF ● 0.50 1.0 1.0 1.5 50 4 1 GSBH 20075SF ● 0.75 1.5 1.5 2.3 50 4 1 GSBH 20100SF ● 1.00 2.0 2.0 3.0 60 6 1 GSBH 20125SF ● 1.25 2.5 2.5 3.8 60 6 1 GSBH 20150SF ● 1.50 3.0 3.0 4.5 60 6 1 GSBH 20200SF ● 2.00 4.0 4.0 6.0 70 6 1 GSBH 20250SF ● 2.50 5.0 5.0 7.5 80 6 1 GSBH 20300SF ● 3.00 6.0 6.0 ― 80 6 2 GSBH 20400SF ● 4.00 8.0 8.0 ― 90 8 2 GSBH 20500SF ● 5.00 10.0 10.0 ― 100 10 2 GSBH 20600SF ● 6.00 12.0 12.0 ― 110 12 2 Grade: ACF07D Recommended Cutting Conditions 1. When the depth of cut is lowered, feed rate can be increased further. 2. If the machine is not suited to the recommended spindle speed, please use the maximum spindle speed available. In this case, lower the feed rate by the same ratio. 3. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. pf Radius Milling Medium Hardened Steel Hardened Steel Hardened Steel Hardened Steel Work Material Pre-hardened Steel, Die Steel SKD61 SKD11 SKH55 Cutting Conditions (40 to 50HRC)Spindle SpeedFeed Rate (50 to 55HRC)Spindle Speed Feed Rate (55 to 60HRC)Spindle SpeedFeed Rate (60 to 65HRC)Spindle SpeedFeed Rate RE (mm) (min -1) (mm/min) (min -1) (mm/min) (min -1) (mm/min) (min -1) (mm/min) 0.20 50,000 500 50,000 500 50,000 500 50,000 500 0.30 50,000 800 50,000 800 50,000 800 50,000 700 0.50 50,000 1,400 50,000 1,400 50,000 1,300 42,000 1,000 0.75 50,000 2,000 50,000 2,000 37,300 1,400 28,000 1,000 1.00 38,100 2,100 38,100 2,100 28,000 1,400 21,000 1,000 1.25 30,500 2,100 30,500 2,100 22,400 1,400 16,800 1,000 1.50 25,400 2,100 25,400 2,100 18,700 1,400 14,000 1,000 2.00 19,100 2,100 19,100 2,100 14,000 1,400 10,500 1,000 2.50 15,300 2,100 15,300 2,100 11,200 1,400 8,400 1,000 3.00 12,700 2,100 12,700 2,100 9,300 1,400 7,000 1,000 4.00 9,500 2,100 9,500 2,100 7,000 1,400 5,300 1,000 5.00 7,600 2,100 7,600 2,100 5,600 1,400 4,200 1,000 6.00 6,400 2,100 6,400 2,100 4,700 1,400 3,500 1,000 Standard ap 0.08DC 0.05DC Depth of Cut pf 0.25DC 0.15DC I132
