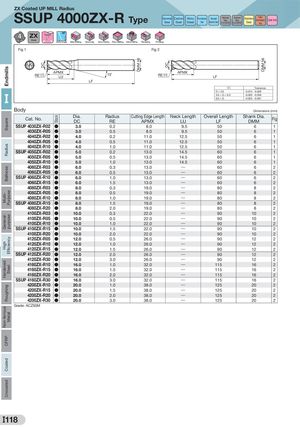

Общий каталог Sumitomo 2019 - 2020 - страница 802

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 DC DMM h6 ZX Coated UP MILL Radius SSUP 4000ZX-R Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Face Milling Helical Milling Ramping Profiling Fig 1 Fig 2 APMXRE+0.02-0.10LU 15˚ APMXRE+0.02-0.10 LF LF DC Tolerance D ≤ 3.0 -0.014 -0.028 I 3.0 < D ≤ 6.0 -0.020 -0.0386.0 < D-0.025-0.047 Body Dimensions (mm) Cat. No. Dia.DC Radius RE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSUP 4030ZX-R02 ● 3.0 0.2 8.0 9.5 50 6 1 SSUP 4030ZX-R05 ● 3.0 0.5 8.0 9.5 50 6 1 SSUP 4040ZX-R02 ● 4.0 0.2 11.0 12.5 50 6 1 SSUP 4040ZX-R05 ● 4.0 0.5 11.0 12.5 50 6 1 SSUP 4040ZX-R10 ● 4.0 1.0 11.0 12.5 50 6 1 SSUP 4050ZX-R02 ● 5.0 0.2 13.0 14.5 60 6 1 SSUP 4050ZX-R05 ● 5.0 0.5 13.0 14.5 60 6 1 SSUP 4050ZX-R10 ● 5.0 1.0 13.0 14.5 60 6 1 SSUP 4060ZX-R03 ● 6.0 0.3 13.0 ― 60 6 2 SSUP 4060ZX-R05 ● 6.0 0.5 13.0 ― 60 6 2 SSUP 4060ZX-R10 ● 6.0 1.0 13.0 ― 60 6 2 SSUP 4060ZX-R15 ● 6.0 1.5 13.0 ― 60 6 2 SSUP 4080ZX-R03 ● 8.0 0.3 19.0 ― 80 8 2 SSUP 4080ZX-R05 ● 8.0 0.5 19.0 ― 80 8 2 SSUP 4080ZX-R10 ● 8.0 1.0 19.0 ― 80 8 2 SSUP 4080ZX-R15 ● 8.0 1.5 19.0 ― 80 8 2 SSUP 4080ZX-R20 ● 8.0 2.0 19.0 ― 80 8 2 SSUP 4100ZX-R03 ● 10.0 0.3 22.0 ― 90 10 2 SSUP 4100ZX-R05 ● 10.0 0.5 22.0 ― 90 10 2 SSUP 4100ZX-R10 ● 10.0 1.0 22.0 ― 90 10 2 SSUP 4100ZX-R15 ● 10.0 1.5 22.0 ― 90 10 2 SSUP 4100ZX-R20 ● 10.0 2.0 22.0 ― 90 10 2 SSUP 4120ZX-R05 ● 12.0 0.5 26.0 ― 90 12 2 SSUP 4120ZX-R10 ● 12.0 1.0 26.0 ― 90 12 2 SSUP 4120ZX-R15 ● 12.0 1.5 26.0 ― 90 12 2 SSUP 4120ZX-R20 ● 12.0 2.0 26.0 ― 90 12 2 SSUP 4120ZX-R30 ● 12.0 3.0 26.0 ― 90 12 2 SSUP 4160ZX-R10 ● 16.0 1.0 32.0 ― 115 16 2 SSUP 4160ZX-R15 ● 16.0 1.5 32.0 ― 115 16 2 SSUP 4160ZX-R20 ● 16.0 2.0 32.0 ― 115 16 2 SSUP 4160ZX-R30 ● 16.0 3.0 32.0 ― 115 16 2 SSUP 4200ZX-R10 ● 20.0 1.0 38.0 ― 125 20 2 SSUP 4200ZX-R15 ● 20.0 1.5 38.0 ― 125 20 2 SSUP 4200ZX-R20 ● 20.0 2.0 38.0 ― 125 20 2 SSUP 4200ZX-R30 ● 20.0 3.0 38.0 ― 125 20 2 Grade: ACZ50M I118
