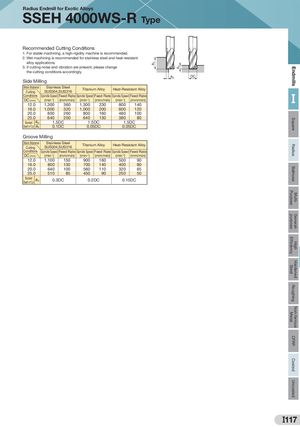

ap ap UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills Radius Endmill for Exotic Alloys SSEH 4000WS-R Type Recommended Cutting Conditions 1. For stable machining, a high-rigidity machine is recommended. 2. Wet machining is recommended for stainless steel and heat-resistant alloy applications. 3. ‌If cutting noise and vibration are present, please change the cutting conditions accordingly. ae DC Side Milling Work Material Stainless SteelCuttingSUS304,SUS316Titanium AlloyHeat-Resistant Alloy Conditions Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed RateDC (mm)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)I 12.0 1,300 360 1,300 230 800 140 16.0 1,000 320 1,000 200 600 120 20.0 800 260 800 160 480 100 25.0 640 200 640 130 380 80 Standard ap 1.5DC 1.5DC 1.5DC Depth of Cut ae 0.1DC 0.05DC 0.05DC Groove Milling Work Material Stainless SteelCuttingSUS304,SUS316Titanium AlloyHeat-Resistant Alloy Conditions Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 12.0 1,100 150 900 160 500 90 16.0 800 130 700 140 400 80 20.0 640 100 560 110 320 65 25.0 510 85 450 90 250 50 StandardDepth of Cutap0.3DC 0.2DC 0.15DC I117
