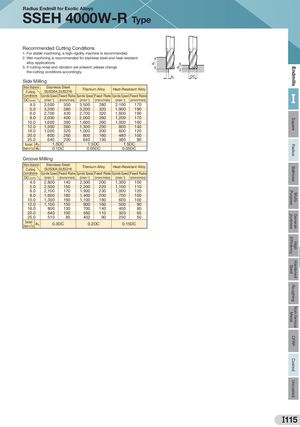

ap ap UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills Radius Endmill for Exotic Alloys SSEH 4000W-R Type Recommended Cutting Conditions 1. For stable machining, a high-rigidity machine is recommended. 2. Wet machining is recommended for stainless steel and heat-resistant alloy applications. 3. ‌If cutting noise and vibration are present, please change the cutting conditions accordingly. ae DC Side Milling Work Material Stainless SteelCuttingSUS304,SUS316Titanium AlloyHeat-Resistant Alloy Conditions Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed RateDC (mm)(min-1)(mm/min)(min-1)(mm/min)(min-1)(mm/min)I 4.5 3,500 350 3,500 280 2,100 170 5.0 3,200 380 3,200 320 1,900 190 6.0 2,700 430 2,700 320 1,600 190 8.0 2,000 400 2,000 280 1,200 170 10.0 1,600 380 1,600 260 1,000 160 12.0 1,300 360 1,300 230 800 140 16.0 1,000 320 1,000 200 600 120 20.0 800 260 800 160 480 100 25.0 640 200 640 130 380 80 Standard ap 1.5DC 1.5DC 1.5DC Depth of Cut ae 0.1DC 0.05DC 0.05DC Groove Milling Work Material Stainless SteelCuttingSUS304,SUS316Titanium AlloyHeat-Resistant Alloy Conditions Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 4.5 2,800 140 2,500 200 1,300 100 5.0 2,500 150 2,200 220 1,100 110 6.0 2,100 170 1,900 230 1,000 120 8.0 1,600 160 1,400 200 700 100 10.0 1,300 160 1,100 180 600 100 12.0 1,100 150 900 160 500 90 16.0 800 130 700 140 400 80 20.0 640 100 560 110 320 65 25.0 510 85 450 90 250 50 StandardDepth of Cutap0.3DC 0.2DC 0.15DC I115
