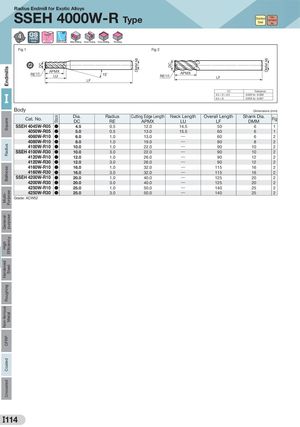

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 DC DMM h6 Radius Endmill for Exotic Alloys SSEH 4000W-R Type Stainless Ti Alloy /Heat ResistantSteelAlloy Corner Flutes Coat Helix Angle Side Milling Groove Finishing Face Milling Profiling Fig 1 Fig 2 APMXRE+0.02-0.01LU 15˚ APMXRE+0.02-0.01 LF LF DC Tolerance I 4.0 < D ≤ 6.0 -0.020 to -0.0386.0 < D-0.025 to -0.047 Body Dimensions (mm) Cat. No. Dia.DC RadiusRE Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSEH 4045W-R05 ● 4.5 0.5 12.0 14.5 50 6 1 SSEH 4050W-R05 ● 5.0 0.5 13.0 15.5 60 6 1 SSEH 4060W-R10 ● 6.0 1.0 13.0 ― 60 6 2 SSEH 4080W-R10 ● 8.0 1.0 19.0 ― 80 8 2 SSEH 4100W-R10 ● 10.0 1.0 22.0 ― 90 10 2 SSEH 4100W-R30 ● 10.0 3.0 22.0 ― 90 10 2 SSEH 4120W-R10 ● 12.0 1.0 26.0 ― 90 12 2 SSEH 4120W-R30 ● 12.0 3.0 26.0 ― 90 12 2 SSEH 4160W-R10 ● 16.0 1.0 32.0 ― 115 16 2 SSEH 4160W-R30 ● 16.0 3.0 32.0 ― 115 16 2 SSEH 4200W-R10 ● 20.0 1.0 40.0 ― 125 20 2 SSEH 4200W-R30 ● 20.0 3.0 40.0 ― 125 20 2 SSEH 4250W-R10 ● 25.0 1.0 50.0 ― 140 25 2 SSEH 4250W-R30 ● 25.0 3.0 50.0 ― 140 25 2 Grade: ACW52 I114
