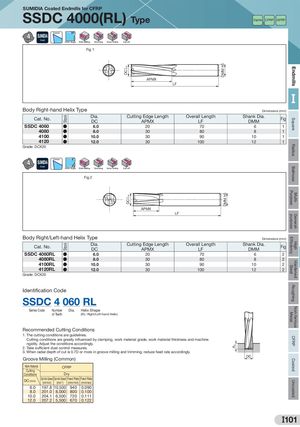

Общий каталог Sumitomo 2019 - 2020 - страница 785

StockStock 0 DC -0.030 DC-0.03 DMM h5DMM h5 ap UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills SUMIDIA Coated Endmills for CFRP SSDC 4000(RL) Type Graphite CFRP GFRP Corner SUMIDIA Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Cut-off Fig 1 APMX LF I Body Right-hand Helix Type Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Overall LengthAPMXLF Shank Dia.DMM Fig SSDC 4060 ● 6.0 20 70 6 1 SSDC 4080 ● 8.0 30 80 8 1 SSDC 4100 ● 10.0 30 90 10 1 SSDC 4120 ● 12.0 30 100 12 1 Grade: DCX20 Corner SUMIDIA Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Cut-off Fig 2 APMX LF Body Right/Left-hand Helix Type Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Overall LengthAPMXLF Shank Dia.DMM Fig SSDC 4060RL ● 6.0 20 70 6 2 SSDC 4080RL ● 8.0 30 80 8 2 SSDC 4100RL ● 10.0 30 90 10 2 SSDC 4120RL ● 12.0 30 100 12 2 Grade: DCX20 Identification Code SSDC 4 060 RL Series Code Number Dia. Helix Shape of Teeth (RL: Right/Left-hand Helix) Recommended Cutting Conditions 1. The cutting conditions are guidelines. Cutting conditions are greatly influenced by clamping, work material grade, work material thickness and machine rigidity. Adjust the conditions accordingly. 2. Take sufficient dust control measures. 3. When radial depth of cut is 0.7D or more in groove milling and trimming, reduce feed rate accordingly. Groove Milling (Common) DC Work Material CFRP Cutting Conditions Dry DC (mm) Spindle Speed Spindle Speed Feed Rate Feed Rate(m/min)(min-1)(mm/min)(mm/rev) 6.0 197.8 10,500 940 0.090 8.0 201.0 8,000 800 0.100 10.0 204.1 6,500 720 0.111 12.0 207.2 5,500 670 0.122 I101
