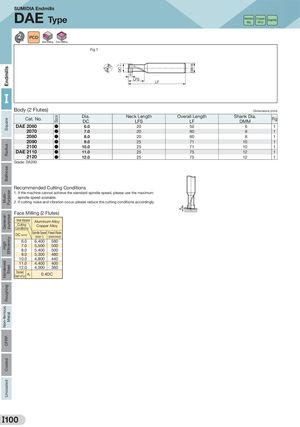

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated Stock DC -0.1 0 ap DMM h6 SUMIDIA Endmills DAE Type Aluminum Copper GraphiteAlloyAlloy PCD Flutes Side Milling Face Milling Fig 1 5 LFS LF I Body (2 Flutes) Dimensions (mm) Cat. No. Dia.DC Neck Length Overall LengthLFSLF Shank Dia.DMM Fig DAE 2060 ● 6.0 20 50 6 1 DAE 2070 ● 7.0 20 60 8 1 DAE 2080 ● 8.0 20 60 8 1 DAE 2090 ● 9.0 25 71 10 1 DAE 2100 ● 10.0 25 71 10 1 DAE 2110 ● 11.0 25 75 12 1 DAE 2120 ● 12.0 25 75 12 1 Grade: DA200 Recommended Cutting Conditions 1. If the machine cannot achieve the standard spindle speed, please use the maximum spindle speed available. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. Face Milling (2 Flutes) Work Material Aluminum Alloy Cutting Copper Alloy Conditions DC (mm) Spindle Speed Feed Rate(min-1)(mm/min) 6.0 6,400 580 7.0 5,500 500 8.0 5,400 500 9.0 5,300 480 10.0 4,800 440 11.0 4,400 400 12.0 4,000 360 StandardDepth of Cutap0.4DC I100
