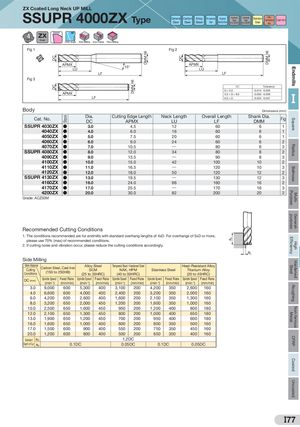

Общий каталог Sumitomo 2019 - 2020 - страница 761

DCDC Stock DMM h6 DMM h6 DC ap DMM h6 UncoatedCoatedCFRPNon-ferrousMetalRoughingHardenedSteelHighEfficiencyGeneral-purposeMulti-PurposeBallnoseRadiusSquareEndmills ZX Coated Long Neck UP MILL SSUPR 4000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel45 to 55HRCHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Groove Finishing Face Milling Fig 1 Fig 2 APMX 15°LU APMX LU LF LF Fig 3 DC Tolerance D ≤ 3.0 -0.014 -0.028 APMX LF 3.0 < D ≤ 6.0 -0.020 -0.0386.0 < D-0.025-0.047 I Body Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSUPR 4030ZX ● 3.0 4.5 12 60 6 1 SSUPR 4040ZX ● 4.0 6.0 16 60 6 1 SSUPR 4050ZX ● 5.0 7.5 20 60 6 1 SSUPR 4060ZX ● 6.0 9.0 24 60 6 2 SSUPR 4070ZX ● 7.0 10.5 ― 80 6 3 SSUPR 4080ZX ● 8.0 12.0 34 80 8 2 SSUPR 4090ZX ● 9.0 13.5 ― 90 8 3 SSUPR 4100ZX ● 10.0 15.0 42 100 10 2 SSUPR 4110ZX ● 11.0 16.5 ― 120 10 3 SSUPR 4120ZX ● 12.0 18.0 50 120 12 2 SSUPR 4130ZX ● 13.0 19.5 ― 130 12 3 SSUPR 4160ZX ● 16.0 24.0 66 160 16 2 SSUPR 4170ZX ● 17.0 25.5 ― 170 16 3 SSUPR 4200ZX ● 20.0 30.0 82 200 20 2 Grade: ACZ50M Recommended Cutting Conditions 1. ‌T he conditions recommended are for endmills with standard overhang lengths of 4xD. For overhangs of 5xD or more, please use 70% (max) of recommended conditions. 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae Side Milling Work MaterialCuttingConditionsCarbon Steel, Cast Iron(150 to 250HB)Alloy SteelSCM(25 to 35HRC)Tempered Steel / Hardened SteelNAK, HPM(40 to 50HRC) Heat-Resistant AlloyStainless SteelTitanium Alloy(20 to 45HRC) DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 3.0 9,000 600 5,300 400 3,100 200 4,200 350 2,600 160 4.0 6,600 600 4,000 400 2,400 200 3,200 350 2,000 160 6.0 4,200 600 2,600 400 1,600 200 2,100 350 1,300 160 8.0 3,200 650 2,000 450 1,200 200 1,600 350 1,000 160 10.0 2,500 650 1,600 450 950 200 1,200 400 800 180 12.0 2,100 650 1,300 450 800 200 1,000 400 650 180 13.0 1,900 650 1,200 450 700 200 950 400 600 180 16.0 1,600 650 1,000 400 600 200 800 350 500 160 17.0 1,500 600 900 400 550 200 750 350 450 160 20.0 1,200 600 800 400 500 200 650 350 400 160 Standard ap 1.2DC Depth of Cut ae 0.1DC 0.05DC 0.1DC 0.05DC I77
