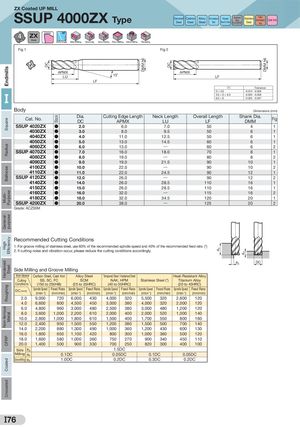

Общий каталог Sumitomo 2019 - 2020 - страница 760

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 DC ap ap DMM h6 ZX Coated UP MILL SSUP 4000ZX Type General CarbonSteelSteelAlloySteelPre-hardenedSteelTemperedSteel/Die SteelHardenedSteel55 to 60HRCStainlessSteelTi Alloy /Heat ResistantAlloyCast Iron Corner Flutes Coat Helix Angle Side Milling Grooving Groove Finishing Face Milling Helical Milling Ramping Fig 1 Fig 2 APMX APMX LU 15˚ LF LF DC Tolerance D ≤ 3.0 -0.014 -0.028 I 3.0 < D ≤ 6.0 -0.020 -0.0386.0 < D-0.025-0.047 Body Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSUP 4020ZX ● 2.0 6.0 7.0 50 4 1 SSUP 4030ZX ● 3.0 8.0 9.5 50 6 1 SSUP 4040ZX ● 4.0 11.0 12.5 50 6 1 SSUP 4050ZX ● 5.0 13.0 14.5 60 6 1 SSUP 4060ZX ● 6.0 13.0 ― 60 6 2 SSUP 4070ZX ● 7.0 16.0 18.0 70 8 1 SSUP 4080ZX ● 8.0 19.0 ― 80 8 2 SSUP 4090ZX ● 9.0 19.0 21.5 90 10 1 SSUP 4100ZX ● 10.0 22.0 ― 90 10 2 SSUP 4110ZX ● 11.0 22.0 24.5 90 12 1 SSUP 4120ZX ● 12.0 26.0 ― 90 12 2 SSUP 4140ZX ● 14.0 26.0 28.5 110 16 1 SSUP 4150ZX ● 15.0 26.0 28.5 110 16 1 SSUP 4160ZX ● 16.0 32.0 ― 115 16 2 SSUP 4180ZX ● 18.0 32.0 34.5 120 20 1 SSUP 4200ZX ● 20.0 38.0 ― 125 20 2 Grade: ACZ50M Recommended Cutting Conditions 1. For groove milling of stainless steel, use 60% of the recommended spindle speed and 40% of the recommended feed rate. (*) 2. If cutting noise and vibration occur, please reduce the cutting conditions accordingly. ae DC Side Milling and Groove Milling Work Material Carbon Steel, Cast Iron Alloy Steel Tempered Steel / Hardened Steel Heat-Resistant Alloy Cutting SS, SC, FC SCM NAK, HPM Stainless Steel (*) Titanium Alloy Conditions (150 to 250HB) (25 to 35HRC) (40 to 50HRC) (20 to 45HRC) DC (mm) Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate Spindle Speed Feed Rate (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) (min-1) (mm/min) 2.0 9,000 720 6,000 430 4,000 320 5,500 320 2,600 120 4.0 6,600 800 4,500 450 3,000 380 4,000 320 2,000 120 6.0 4,800 960 3,000 480 2,500 380 3,000 480 1,200 120 8.0 3,600 1,000 2,200 610 2,000 400 2,000 520 1,000 140 10.0 2,800 1,000 1,800 610 1,500 400 1,700 550 800 160 12.0 2,400 950 1,500 550 1,200 380 1,500 500 700 140 14.0 2,200 880 1,300 490 1,000 360 1,200 430 600 130 16.0 1,800 650 1,100 420 800 300 1,000 360 500 120 18.0 1,600 580 1,000 360 750 270 900 340 450 110 20.0 1,400 500 900 330 700 250 820 300 400 100 Side ap 1.5DC Milling ae 0.1DC 0.05DC 0.1DC 0.05DC Groove Miling ap 1.0DC 0.2DC 0.3DC 0.2DC I76
