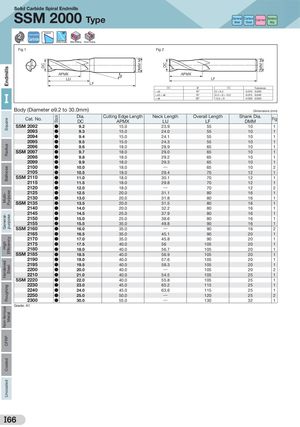

Общий каталог Sumitomo 2019 - 2020 - страница 750

EndmillsSquareRadiusBallnoseMulti-PurposeGeneral-purposeHighEfficiencyHardene dSteelRoughingNon-ferrousMetalCFRPCoatedUncoated DC Stock DMM h6 DC DMM h6 Solid Carbide Spiral Endmills SSM 2000 Type General Carbon Cast Iron AluminumSteelSteelAlloy Corner Uncoated Flutes Carbide Helix Angle Side Milling Groove Finishing Fig 1 Fig 2 APMX APMX θLU LF LF DC θ DC Tolerance < ø3 10° D ≤ 6.0 -0.010 -0.030 I ≥ ø3 < ø6 15° 6.0 < D ≤ 10.0 -0.015 -0.040> ø620°10.0 < D-0.020-0.050 Body (Diameter ø9.2 to 30.0mm) Dimensions (mm) Cat. No. Dia.DC Cutting Edge Length Neck Length Overall LengthAPMXLULF Shank Dia.DMM Fig SSM 2092 ● 9.2 15.0 23.9 55 10 1 SSM 2093 ● 9.3 15.0 24.0 55 10 1 SSM 2094 ● 9.4 15.0 24.1 55 10 1 SSM 2095 ● 9.5 15.0 24.3 55 10 1 SSM 2096 ● 9.6 18.0 28.9 65 10 1 SSM 2097 ● 9.7 18.0 29.0 65 10 1 SSM 2098 ● 9.8 18.0 29.2 65 10 1 SSM 2099 ● 9.9 18.0 29.3 65 10 1 SSM 2100 ● 10.0 18.0 ― 65 10 2 SSM 2105 ● 10.5 18.0 29.4 70 12 1 SSM 2110 ● 11.0 18.0 30.1 70 12 1 SSM 2115 ● 11.5 18.0 29.8 70 12 1 SSM 2120 ● 12.0 18.0 ― 70 12 2 SSM 2125 ● 12.5 20.0 31.1 80 16 1 SSM 2130 ● 13.0 20.0 31.8 80 16 1 SSM 2135 ● 13.5 20.0 31.5 80 16 1 SSM 2140 ● 14.0 20.0 32.2 80 16 1 SSM 2145 ● 14.5 25.0 37.9 80 16 1 SSM 2150 ● 15.0 25.0 38.6 80 16 1 SSM 2155 ● 15.5 35.0 49.8 90 16 1 SSM 2160 ● 16.0 35.0 ― 90 16 2 SSM 2165 ● 16.5 35.0 45.1 90 20 1 SSM 2170 ● 17.0 35.0 45.8 90 20 1 SSM 2175 ● 17.5 40.0 56 105 20 1 SSM 2180 ● 18.0 40.0 56.7 105 20 1 SSM 2185 ● 18.5 40.0 56.9 105 20 1 SSM 2190 ● 19.0 40.0 57.6 105 20 1 SSM 2195 ● 19.5 40.0 58.3 105 20 1 SSM 2200 ● 20.0 40.0 ― 105 20 2 SSM 2210 ● 21.0 40.0 54.5 105 25 1 SSM 2220 ● 22.0 40.0 55.8 105 25 1 SSM 2230 ● 23.0 45.0 65.2 115 25 1 SSM 2240 ● 24.0 45.0 63.6 115 25 1 SSM 2250 ● 25.0 50.0 ― 120 25 2 SSM 2300 ● 30.0 55.0 ― 130 32 1 Grade: A1 I66
