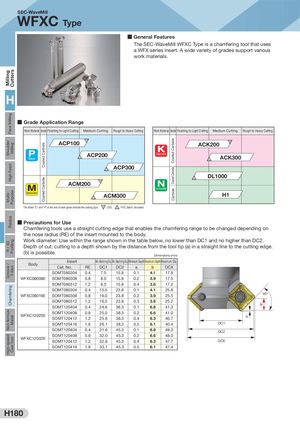

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Coated CarbideCoated Carbide Coated CarbideCoated CarbideCarbide SEC-WaveMill WFXC Type ■ General Features The SEC-WaveMill WFXC Type is a chamfering tool that uses a WFX series insert. A wide variety of grades support various work materials. H ■ Grade Application Range Work Material Grade Finishing to Light Cutting Medium Cutting Rough to Heavy Cutting Work Material Grade Finishing to Light Cutting Medium Cutting Rough to Heavy Cutting CACP100 CACK200 Steel P ACP200 Cast Iron P ACK300 P ACP300 P DL1000 C ACM200 Non-Ferrous Metal Stainless Steel P ACM300 H1 The letters "C" and "P" at the end of each grade indicate the coating type.   C : CVD,  P  : PVD, Blank: Uncoated ■ Precautions for Use Chamfering tools use a straight cutting edge that enables the chamfering range to be changed depending on the nose radius (RE) of the insert mounted to the body. Work diameter: Use within the range shown in the table below, no lower than DC1 and no higher than DC2. Depth of cut: cutting to a depth shown by the distance from the tool tip (a) in a straight line to the cutting edge. (b) is possible. Dimensions (mm) Insert Min. Machining Dia. Min. Machining Dia. Minimum Depth Maximum Depth Maximum Dia. Body Cat. No. RE DC1 DC2 a b DCX SOMT080304 0.4 7.5 15.8 0.1 4.1 17.8 WFXC08008E SOMT080308 0.8 8.0 15.8 0.2 3.9 17.5 SOMT080312 1.2 8.5 15.8 0.4 3.6 17.2 SOMT080304 0.4 15.5 23.8 0.1 4.1 25.8 WFXC08016E SOMT080308 0.8 16.0 23.8 0.2 3.9 25.5 45° SOMT080312 1.2 16.5 23.8 0.3 3.6 25.2 b SOMT120404 0.4 24.6 38.3 0.1 6.8 41.3 SOMT120408 0.8 25.0 38.3 0.2 6.6 41.0 WFXC12025E SOMT120412 1.2 25.6 38.3 0.4 6.3 40.7 a SOMT120416 1.6 26.1 38.3 0.5 6.1 40.4 DC1 SOMT120404 0.4 31.6 45.3 0.1 6.8 48.3 DC2 SOMT120408 0.8 32.0 45.3 0.2 6.6 48.0 WFXC12032E SOMT120412 1.2 32.6 45.3 0.4 6.3 47.7 DCX SOMT120416 1.6 33.1 45.3 0.5 6.1 47.4 H180
