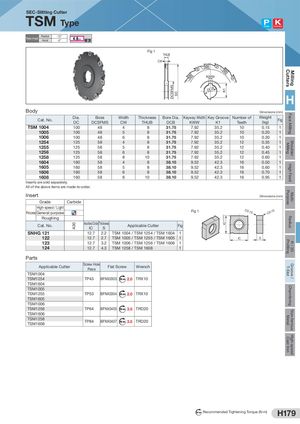

A30 DCSFMS DC K1 IC±0.013 High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Slitting Cutter TSM Type Steel Cast Iron Radial -12° Rake Angle Axial -2° to Fig 1 THUB CW KWW DCB H Body  Dimensions (mm) Cat. No. Dia.DC BossDCSFMS WidthCW Thickness Bore Dia. Keyway Width Key Groove Number ofTHUBDCBKWWK1TeethWeight(kg) Fig TSM 1004 100 48 4 8 31.75 7.92 35.2 10 0.15 1 TSM 1005 100 48 5 8 31.75 7.92 35.2 10 0.20 1 TSM 1006 100 48 6 8 31.75 7.92 35.2 10 0.30 1 TSM 1254 125 58 4 8 31.75 7.92 35.2 12 0.35 1 TSM 1255 125 58 5 8 31.75 7.92 35.2 12 0.40 1 TSM 1256 125 58 6 8 31.75 7.92 35.2 12 0.45 1 TSM 1258 125 58 8 10 31.75 7.92 35.2 12 0.60 1 TSM 1604 160 58 4 8 38.10 9.52 42.3 16 0.50 1 TSM 1605 160 58 5 8 38.10 9.52 42.3 16 0.60 1 TSM 1606 160 58 6 8 38.10 9.52 42.3 16 0.70 1 TSM 1608 160 58 8 10 38.10 9.52 42.3 16 0.95 1 Inserts are sold separately. All of the above items are made-to-order. Insert  Dimensions (mm) Grade Carbide High-speed / Light Process General-purpose Fig 1 C0.15 C0.15 Roughing Cat. No. Inscribed Circle ThicknessICS Applicable Cutter Fig SNHG 121 12.7 2.2 TSM 1004 / TSM 1254 / TSM 1604 1 SNHG 122 12.7 2.7 TSM 1005 / TSM 1255 / TSM 1605 1 IC S SNHG 123 12.7 3.2 TSM 1006 / TSM 1256 / TSM 1606 1 SNHG 124 12.7 4.3 TSM 1258 / TSM 1608 1 Parts Applicable Cutter Screw HolePieceFlat Screw Wrench TSM1004 TSM1254 TP43 BFNX0303 Nm 2.0 TRX10 TSM1604 TSM1005 TSM1255 TP53 BFNX0304 Nm 2.0 TRX10 TSM1605 TSM1006 TSM1256 TP64 BFNX0405 Nm 3.5 TRD20 TSM1606 TSM1258TSM1608 TP84 BFNX0407 Nm 3.5 TRD20 N m Recommended Tightening Torque (N·m) H179
