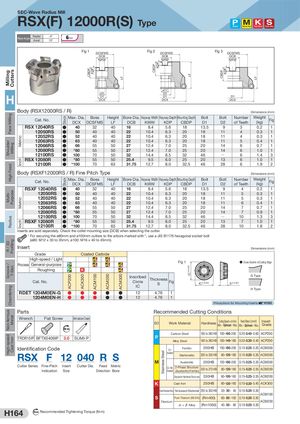

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInchMetricInch StockStock ACP200 ACK300 CBDP KDP ACM100 ACM200 LFACM300 CBDP KDP Stainless Steel LFIC±0.025 CBDP KDP LF SEC-Wave Radius Mill RSX(F) 12000R(S) Type Steel Stainless Steel Cast Iron Exotic Alloy Radial -5° Rake Angle Axial 10° Fig 1 DCSFMS Fig 2 DCSFMS Fig 3 DCSFMS DCB DCB DCB KWW KWW KWW ø17 D2 D2 H D1 D1 D1DCXDCXDCX Body (RSX12000RS / R)  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig RSX 12040RS ● 40 32 40 16 8.4 5.6 18 13.5 9 3 0.2 1 RSX 12050RS ● 50 40 40 22 10.4 6.3 20 18 11 4 0.3 1 RSX 12052RS ● 52 40 40 22 10.4 6.3 20 18 11 4 0.3 1 RSX 12063RS ● 63 40 40 22 10.4 6.3 20 18 11 5 0.4 1 RSX 12066RS ● 66 55 50 27 12.4 7.0 25 20 14 6 0.7 1 RSX 12080RS ● *80 55 50 27 12.4 7.0 25 20 14 6 1.0 1 RSX 12100RS ● 100 70 50 32 14.4 8.5 32 46 Q 6 1.4 3 RSX 12080R ● *80 55 50 25.4 9.5 6.0 25 20 13 6 1.0 1 RSX 12100R ● *100 70 63 31.75 12.7 8.0 32.5 46 28 6 1.9 2 Body (RSXF12000RS / R) Fine Pitch Type  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig RSXF 12040RS ● 40 32 40 16 8.4 5.6 18 13.5 9 4 0.2 1 RSXF 12050RS ● 50 40 40 22 10.4 6.3 20 18 11 5 0.3 1 RSXF 12052RS ● 52 40 40 22 10.4 6.3 20 18 11 5 0.3 1 RSXF 12063RS ● 63 40 40 22 10.4 6.3 20 18 11 6 0.4 1 RSXF 12066RS ● 66 55 50 27 12.4 7.0 25 20 14 7 0.7 1 RSXF 12080RS ● *80 55 50 27 12.4 7.0 25 20 14 7 0.9 1 RSXF 12100RS ● 100 70 50 32 14.4 8.5 32 46 Q 10 1.3 3 RSXF 12080R ● *80 55 50 25.4 9.5 6.0 25 20 13 7 1.0 1 RSXF 12100R ● *100 70 63 31.75 12.7 8.0 32.5 46 28 10 1.8 2 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. * For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light Process General-purpose Fig 1 ● Cross Section of Cutting Edge Roughing K Cat. No. InscribedCircleICThickness S Fig G TypeIC±0.025S±0.025 H Type RDET 1204M0EN-G ● ● ● ● ● 12 4.76 1 RDET 1204M0EN-H ● ● ● ● ● 12 4.76 1 Precautions for Mounting Inserts H162 Parts Recommended Cutting Conditions Wrench Flat Screw Anti-seizure Cream ISO Work Material Hardness Cutting Speed vc (m/min)Min. - Optimum - Max.Feed Rate fz (mm/t)Min. - Optimum - Max.InsertGrade Nm Carbon Steel 180 to 280 HB 100-160-200 0.20-0.40- 0.60 ACP200 TRDR15IP BFTX0409IP 3.0 SUMI-P P Alloy Steel 180 to 280 HB 100-140-180 0.20-0.30- 0.40 ACP200 Identification Code Cr- Ferritic 200HB 150-180-200 0.15-0.25- 0.35 ACM300 RSX F 12 040 R S based Martensitic 200 to 330 HB 80-120-180 0.15-0.25- 0.35 ACM300 M Austenitic 200HB 150-180-200 0.15-0.25- 0.35 ACM300 Cutter Series Fine-Pitch Insert Cutter Dia. Feed MetricIndicationSizeDirectionBore Cr-Ni-based2-Phase Structure(Austenitic/Ferritic)230 to 270 HB80-120-180 0.15-0.25- 0.35 ACM200 Deposition Hardened Structures 330HB 60-100-160 0.15-0.25- 0.35 ACM200 K Cast Iron 250HB 80-120-160 0.10-0.30- 0.40 ACK300 Heat-Resistant Alloy Ni-based Material 250 to 350 HB 20- 30 - 40 0.10-0.20- 0.30 ACM100 S Pure Titanium (99.5%) (Rm400) 60- 80 -100 0.10-0.20- 0.30 Titanium ACM200 α + β Alloy (Rm1050) 40- 50 - 60 0.10-0.20- 0.30 H164 N m Recommended Tightening Torque (N·m)
