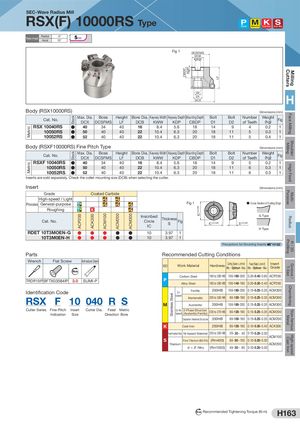

MetricMetric StockStock ACP200 ACK300 ACM100 ACM200 ACM300 Stainless Steel CBDP KDP IC±0.025 LF High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Wave Radius Mill RSX(F) 10000RS Type Steel Stainless Steel Cast Iron Exotic Alloy Radial -5° Rake Angle Axial 10° Fig 1 DCSFMS DCB KWW D2 D1DCX H Body (RSX10000RS)  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig RSX 10040RS ● 40 34 40 16 8.4 5.6 18 14 9 4 0.2 1 RSX 10050RS ● 50 40 40 22 10.4 6.3 20 18 11 5 0.3 1 RSX 10052RS ● 52 40 40 22 10.4 6.3 20 18 11 5 0.4 1 Body (RSXF10000RS) Fine Pitch Type  Dimensions (mm) Cat. No. Max. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCXDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig RSXF 10040RS ● 40 34 40 16 8.4 5.6 18 14 9 5 0.2 1 RSXF 10050RS ● 50 40 40 22 10.4 6.3 20 18 11 6 0.3 1 RSXF 10052RS ● 52 40 40 22 10.4 6.3 20 18 11 6 0.3 1 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light Process General-purpose Fig 1 ● Cross Section of Cutting Edge Roughing K Cat. No. InscribedCircleICThickness S Fig G TypeIC±0.025S±0.025 H Type RDET 10T3MOEN-G ● ● ● ● ● 10 3.97 1 RDET 10T3M0EN-H ● ● ● ● ● 10 3.97 1 Precautions for Mounting Inserts H162 Parts Recommended Cutting Conditions Wrench Flat Screw Anti-seizure Cream ISO Work Material Hardness Cutting Speed vc (m/min)Min. - Optimum - Max.Feed Rate fz (mm/t)Min. - Optimum - Max.InsertGrade Nm Carbon Steel 180 to 280 HB 100-160-200 0.20-0.40- 0.60 ACP200 TRDR15IP BFTX03584IP 3.0 SUMI-P P Alloy Steel 180 to 280 HB 100-140-180 0.20-0.30- 0.40 ACP200 Identification Code Cr- Ferritic 200HB 150-180-200 0.15-0.25- 0.35 ACM300 RSX F 10 040 R S based Martensitic 200 to 330 HB 80-120-180 0.15-0.25- 0.35 ACM300MAustenitic200HB150-180-2000.15-0.25- 0.35ACM300 Cutter Series Fine-Pitch Insert Cutter Dia. Feed MetricIndicationSizeDirectionBore Cr-Ni-based2-Phase Structure(Austenitic/Ferritic)230 to 270 HB80-120-180 0.15-0.25- 0.35 ACM200 Deposition Hardened Structures 330HB 60-100-160 0.15-0.25- 0.35 ACM200 K Cast Iron 250HB 80-120-160 0.10-0.30- 0.40 ACK300 Heat-Resistant Alloy Ni-based Material 250 to 350 HB 20- 30 - 40 0.10-0.20- 0.30 ACM100 S Pure Titanium (99.5%) (Rm400) 60- 80 -100 0.10-0.20- 0.30 Titanium ACM200 α + β Alloy (Rm1050) 40- 50 - 60 0.10-0.20- 0.30 N m Recommended Tightening Torque (N·m) H163
