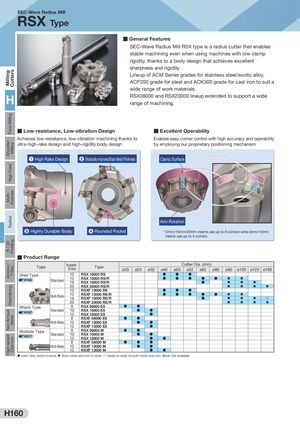

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron SEC-Wave Radius Mill RSX Type ■ General Features SEC-Wave Radius Mill RSX type is a radius cutter that enables stable machining even when using machines with low clamp rigidity, thanks to a body design that achieves excellent sharpness and rigidity. Lineup of ACM Series grades for stainless steel/exotic alloy, ACP200 grade for steel and ACK300 grade for cast iron to suit a wide range of work materials. H RSX08000 and RSX20000 lineup extended to support a widerange of machining. ■ Low-resistance, Low-vibration Design ■ Excellent Operability Achieves low-resistance, low-vibration machining thanks to Enables easy corner control with high accuracy and operability ultra-high-rake design and high-rigidity body design by employing our proprietary positioning mechanism 1 High Rake Design 2 Drastically Improved Back Metal Thickness Clamp Surface Anti-Rotation Highly Durable Body Rounded Pocket *12mm/16mm/20mm inserts use up to 8 corners while 8mm/10mm inserts use up to 4 corners. ■ Product Range Type InsertSize Type Cutter Dia. (mm)ø20ø25ø32ø40ø50ø52ø63ø66ø80 ø100 ø125 ø160 Shell Type 10 RSX 10000 RS D D D H163 Standard 1216 RSX 12000 RS/RRSX 16000 RS/R D D D D D A ADAA A 20 RSX 20000 RS/R A A A A 10 RSXF 10000 RS D D D Multi-Blade 1216 RSXF 12000 RS/RRSXF 16000 RS/R D D D D D A ADAA A S 20 RSXF 20000 RS/R A A A A Shank Type 8 RSX 08000 ES D D H167 Standard 10 RSX 10000 ES12RSX 12000 ES D DD 8 RSXF 08000 ES D D Multi-Blade 10 RSXF 10000 ES D D 12 RSXF 12000 ES D Modular Type 8 RSX 08000 M D D H217 Standard 10 RSX 10000 M12RSX 12000 M D DD D 8 RSXF 08000 M D D D Multi-Blade 10 RSXF 10000 M D D 12 RSXF 12000 M D D D mark: Only metric in stock, A: Both metric and inch in stock, S: Made-to-order for both metric and inch, Blank: Not available H160
