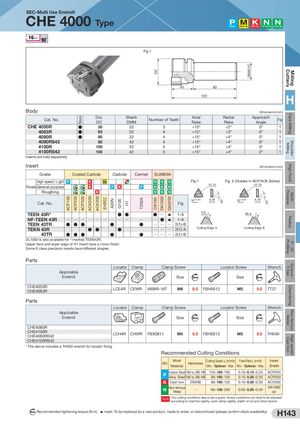

Общий каталог Sumitomo 2019 - 2020 - страница 587

ACP100 ACP200 StockACP300 ACK200 ACK300 EH20Z A30N G10E H1 T250A DCDA150 DA1000 DA2200 20° DMM h7 20° High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Multi Use Endmill CHE 4000 Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Fig 1 40 80 120 H Body  Dimensions (mm) Cat. No. Dia.DC ShankDMM Number of Teeth AxialRake RadialRake ApproachAngle Fig CHE 4050R ● 50 32 3 +15° +2° 0° 1 CHE 4063R ● 63 32 4 +15° +3° 0° 1 CHE 4080R ● 80 32 4 +15° +4° 0° 1 CHE 4080RS42 80 42 4 +15° +4° 0° 1 CHE 4100R 100 32 5 +15° +4° 0° 1 CHE 4100RS42 100 42 5 +15° +4° 0° 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide Cermet SUMIDIA High-speed / Light P K M N N N Fig 1 Fig. 2 (Grades in ACP/ACK Series) Process General-purpose K P K P N N N 12.70 12.70 Roughing K N N N M±0.025 4.76 M±0.025 4.76 Cat. No. Fig TEEN 43R* ● ● ● Q ▲ 1-A 0.5 1.4 R0.8 1.4 NF-TEEN 43R Q Q Q Q Q Q Q Q Q Q Q ● ▲ 1-A TEEN 43TR ● ● ● ● ● Q Q Q 2(1)-B TEKN 43R ● ● ● Q Q Q 2(1)-A Cutting Edge A Cutting Edge B TEKN 43TR ● ● ● ● ● Q Q Q 2(1)-B DL1000 is also available for *-marked TEEN43R. Upper face and wiper edge of H1 insert have a mirror finish. Some E class precision inserts have different shapes. Parts Locator Clamp Clamp Screw Locator Screw Wrench Applicable Endmill Size Nm Size Nm CHE4050RCHE4063R LCE4R CEWR WB8R-16T M8 8.0 FBH0512 M5 5.0 TT27 Parts Locator Clamp Clamp Screw Locator Screw Wrench Applicable Endmill Size Nm Size Nm CHE4080R CHE4100RCHE4080RS42 LCH4R CHWR FBX0811 M5 5.0 FBH0512 M5 5.0 TH040 CHE4100RS42 * The above includes a TH030 wrench for locator fixing. Recommended Cutting Conditions WorkISOMaterialHardnessCutting Speed vc (m/min) Feed Rate fz (mm/t)Min. - Optimum - Max.Min. - Optimum - Max.InsertGrade P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB125- 100 -15080- 100 -1200.10- 0.15 -0.20 ACP2000.10- 0.20 -0.30ACP200 K Cast Iron 250HB 80- 100 -120 0.10- 0.20 -0.30 ACK200 N Non-ferrousMetal Q 60- 130 -200 0.05- 0.20 -0.30 DA1000 H1 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. N m Recommended tightening torque (N·m) ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability) H143
