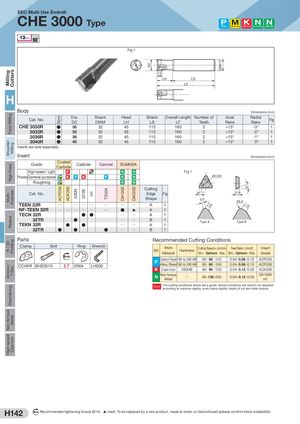

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron StockACP200 ACK200 A30N G10E H1 T250A DA1000 DA2200 DC DMM h7 20° SEC-Multi Use Endmill CHE 3000 Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Fig 1 13 LH LS LF H Body Dimensions (mm) Cat. No. Dia.DC ShankDMM HeadLH Shank Overall Length Number of AxialLSLFTeethRake RadialRake Fig CHE 3030R ● 30 32 45 115 160 2 +15° -3° 1 CHE 3032R ● 32 32 45 115 160 2 +15° -2° 1 CHE 3036R ● 36 32 45 115 160 2 +15° -1° 1 CHE 3040R ● 40 32 45 115 160 2 +15° 0° 1 Inserts are sold separately. Insert Dimensions (mm) Grade CoatedCarbide Carbide Cermet SUMIDIA High-speed / Light K N N Fig 1 Process General-purpose K P K P N N ø9.525 Roughing N N Cutting Cat. No. Edge Fig M±0.013 3.18 ShapeTEEN 32RQQQQQQQA 1 0.5 1.0 R0.8 1.0 NF-TEEN 32R Q Q Q Q Q Q ● ▲ A 1 TECN 32R ● ● Q Q A 1 TECN 32TR ● Q Q B 1 Type A Type B TEKN 32R ● ● Q Q A 1 TEKN 32TR ● ● ● Q Q B 1 Parts Recommended Cutting Conditions Clamp Bolt Ring Wrench WorkISO Hardness Cutting Speed vc (m/min) Feed Rate fz (mm/t) Insert Material Min. - Optimum - Max. Min. - Optimum - Max. Grade Nm CCH5R BHE0510 2.7 ER04 LH030 P Carbon Steel 180 to 280 HBAlloy Steel 180 to 280 HB60- 90 -12060- 80 -1000.04- 0.08 -0.15 ACP2000.04- 0.08 -0.13ACP200 K Cast Iron 250HB 60- 90 -120 0.04- 0.12 -0.20 ACK200 N Non-ferrousMetalQ 60- 130 -200 0.04- 0.12 -0.20 DA1000 H1 Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. H142 N m Recommended tightening torque (N·m) ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability)
