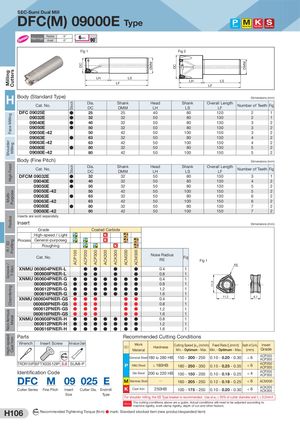

Общий каталог Sumitomo 2019 - 2020 - страница 550

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron StockStock ACP100 DC ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 DMM DC 11.3 DMM SEC-Sumi Dual Mill DFC(M) 09000E Type Steel Stainless Steel Cast Iron Exotic Alloy Radial -9° Rake Angle Axial -5° Fig 1 Fig 2 LH LS LF LH LS LF H Body (Standard Type) Cat. No. Dia.DC Dimensions (mm)ShankDMMHeadLHShankLSOverall LengthLFNumber of Teeth Fig DFC 09025E ● 25 25 40 80 120 2 1 DFC 09032E ● 32 32 50 80 130 2 1 DFC 09040E ● 40 32 50 80 130 3 2 DFC 09050E ● 50 32 50 80 130 3 2 DFC 09050E-42 50 42 50 100 150 3 2 DFC 09063E ● 63 32 50 80 130 4 2 DFC 09063E-42 63 42 50 100 150 4 2 DFC 09080E ● 80 32 50 80 130 5 2 DFC 09080E-42 80 42 50 100 150 5 2 Body (Fine Pitch)  Dimensions (mm) Cat. No. Dia.DC ShankDMM Head LH ShankLS Overall LengthLF Number of Teeth Fig DFCM 09032E ● 32 32 50 80 130 3 1 DFCM 09040E ● 40 32 50 80 130 4 2 DFCM 09050E ● 50 32 50 80 130 5 2 DFCM 09050E-42 50 42 50 100 150 5 2 DFCM 09063E ● 63 32 50 80 130 6 2 DFCM 09063E-42 63 42 50 100 150 6 2 DFCM 09080E ● 80 32 50 80 130 7 2 DFCM 09080E-42 80 42 50 100 150 7 2 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K Process General-purposeg K Roughing K Cat. No. Nose RadiusRE Fig Fig 1 RE XNMU 060604PNER-L ● ● ● ● 0.4 1 XNMU 060608PNER-L ● ● ● ● 0.8 1 XNMU 060604PNER-G ● ● ● ● ● ● ● 0.4 1 XNMU 060608PNER-G ● ● ● ● ● ● ● 0.8 1 XNMU 060612PNER-G ● ● ● ● ● ● ● 1.2 1 XNMU 060616PNER-G ● ● ● ● ● ● ● 1.6 1 XNMU 060604PNER-GS ● ● ● ● ● 0.4 1 11.2 6.1 XNMU 060608PNER-GS ● ● ● ● ● 0.8 1 XNMU 060612PNER-GS ● ● ● ● ● 1.2 1 XNMU 060616PNER-GS ● ● ● ● ● 1.6 1 XNMU 060608PNER-H ● ● ● ● ● ● ● 0.8 1 XNMU 060612PNER-H ● ● ● ● ● ● ● 1.2 1 XNMU 060616PNER-H ● ● ● ● ● ● ● 1.6 1 Parts Recommended Cutting Conditions Wrench Insert Screw Anti-seizure Cream WorkISOMaterial Hardness Cutting Speed (vc) (m/min) Feed Rate fz (mm/t) Depth of Cut ap InsertMin. - Optimum - Max.Min. - Optimum - Max.(mm)Grade Nm General Steel 180 to 280 HB 150 - 200 - 250 0.10 - 0.20 - 0.30 <6 ACP200ACP300 TRDR15IP BFTX03512IP 3.0 SUMI-P P Mild Steel ≤ 180HB 180 - 250 - 350 0.15 - 0.25 - 0.35 <6 ACP200ACP300 Identification Code Die Steel 200 to 220 HB 100 - 150 - 200 0.10 - 0.18 - 0.25 <4 ACP200ACP300 DFC M 09 025 E M Stainless Steel Q 160 - 205 - 250 0.12 - 0.18 - 0.25 <6 ACM300 Cutter Series Fine Pitch Insert Cutter Dia. Endmill K Cast Iron 250HB 100 - 175 - 250 0.10 - 0.20 - 0.30 <6 ACK200ACK300 Size Type For shoulder milling, the GS Type breaker is recommended. Use at ae ≤ 50% of cutter diameter and fz ≤ 0.2mm/t. Note The cutting conditions above are a guide. Actual conditions will need to be adjusted according to machine rigidity, work clamp rigidity, depth of cut and other factors. H106 N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item)
