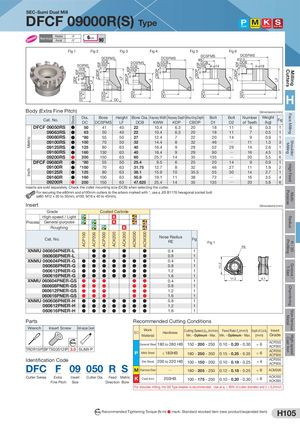

Общий каталог Sumitomo 2019 - 2020 - страница 549

MetricInch CBDP KDPStock ACP100 LFACP200 KDPCBDP ACP300 ACK200 LF KDPCBDPACK300 ACM200 ACM300 LF CBDP KDP LF CBDP KDP 11.3 LF KDPCBDP LF High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Sumi Dual Mill DFCF 09000R(S) Type Steel Stainless Steel Cast Iron Exotic Alloy Radial -9° Rake Angle Axial -5° Fig 1 Fig 2 Fig 3 Fig 4 Fig 5 Fig 6 DCSFMS DCSFMS DCSFMSø66.7 DCSFMSø101.6 DCB DCSFMS DCB DCB DCB DCSFMS KWW DCB KWW KWW 4-ø14 KWW 4-ø18 DCB KWW KWW D2 ø18 D1 D1 D1 D1 D1 D2 DC DC DC DCDCD1DC H Body (Extra Fine Pitch)  Dimensions (mm) Cat. No. Dia. Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCDCSFMSLFDCBKWWKDPCBDPD1BoltD2Numberof Teeth Weight(kg) Fig DFCF 09050RS ● 50 41 40 22 10.4 6.3 20 18 11 6 0.3 1 DFCF 09063RS ● 63 50 40 22 10.4 6.3 20 18 11 7 0.5 1 DFCF 09080RS ● *80 55 50 27 12.4 7 22 20 14 9 0.9 1 DFCF 09100RS ● 100 70 50 32 14.4 8 32 46 Q 11 1.3 3 DFCF 09125RS ● 125 80 63 40 16.4 9 29 52 29 14 2.6 1 DFCF 09160RS ● 160 130 63 40 16.4 9 29 90 Q 16 4.5 5 DFCF 09200RS ● 200 150 63 60 25.7 14 35 135 Q 20 5.5 6 DFCF 09080R ● *80 55 50 25.4 9.5 6 25 20 14 9 0.9 1 DFCF 09100R ● *100 70 63 31.75 12.7 8 32 46 27 11 1.9 2 DFCF 09125R ● 125 80 63 38.1 15.9 10 35.5 55 30 14 2.7 1 DFCF 09160R ● 160 100 63 50.8 19.1 11 38 72 Q 16 3.5 4 DFCF 09200R ● 200 150 63 47.625 25.4 14 35 135 Q 20 5.8 6 Inserts are sold separately. Check the collet mounting size (DCB) when selecting the cutter. For securing the ø80mm and ø100mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (ø80: M12 x 30 to 35mm, ø100: M16 x 40 to 45mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K Process General-purpose K Roughing K Cat. No. Nose RadiusRE Fig Fig 1 RE XNMU 060604PNER-L ● ● ● ● 0.4 1 XNMU 060608PNER-L ● ● ● ● 0.8 1 XNMU 060604PNER-G ● ● ● ● ● ● ● 0.4 1 XNMU 060608PNER-G ● ● ● ● ● ● ● 0.8 1 XNMU 060612PNER-G ● ● ● ● ● ● ● 1.2 1 XNMU 060616PNER-G ● ● ● ● ● ● ● 1.6 1 XNMU 060604PNER-GS ● ● ● ● ● 0.4 1 11.2 6.1 XNMU 060608PNER-GS ● ● ● ● ● 0.8 1 XNMU 060612PNER-GS ● ● ● ● ● 1.2 1 XNMU 060616PNER-GS ● ● ● ● ● 1.6 1 XNMU 060608PNER-H ● ● ● ● ● ● ● 0.8 1 XNMU 060612PNER-H ● ● ● ● ● ● ● 1.2 1 XNMU 060616PNER-H ● ● ● ● ● ● ● 1.6 1 Parts Recommended Cutting Conditions Wrench Insert Screw Anti-seizure Cream WorkISOMaterial Hardness Cutting Speed (vc) (m/min) Feed Rate fz (mm/t) Depth of Cut ap InsertMin. - Optimum - Max.Min. - Optimum - Max.(mm)Grade Nm General Steel 180 to 280 HB 150 - 200 - 250 0.10 - 0.20 - 0.30 <6 ACP200ACP300 TRDR15IP BFTX03512IP 3.0 SUMI-P P Mild Steel ≤ 180HB 180 - 250 - 350 0.15 - 0.25 - 0.35 <6 ACP200ACP300 Identification Code Die Steel 200 to 220 HB 100 - 150 - 200 0.10 - 0.18 - 0.25 <4 ACP200ACP300 DFC F 09 050 R S M Stainless Steel Q 160 - 205 - 250 0.12 - 0.18 - 0.25 <6 ACM300 Cutter Series Extra Insert Cutter Dia. Feed Metric K Cast Iron 250HBFine PitchSizeDirectionBore100 - 175 - 2500.10 - 0.20 - 0.30 <6 ACK200ACK300 For shoulder milling, the GS Type breaker is recommended. Use at ae ≤ 50% of cutter diameter and fz ≤ 0.2mm/t. N m Recommended Tightening Torque (N·m) ● mark: Standard stocked item (new product/expanded item) H105
