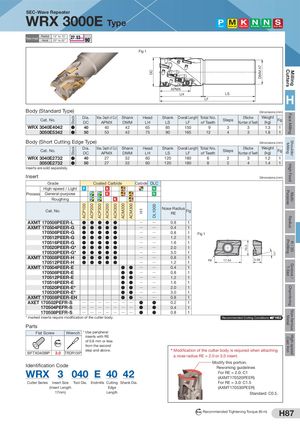

Общий каталог Sumitomo 2019 - 2020 - страница 531

StockStock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 H1 DC DL1000 10.2 DMM h7 11° High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC-Wave Repeater WRX 3000E Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 12° to 13°Rake Angleto Axial 20° to 22° Fig 1 APMX LH LS LF H Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut ShankDCAPMXDMM HeadLH Shank Overall Length Total No.LSLFof TeethSteps EffectiveNumber of Teeth Weight(kg) Fig WRX 3040E4042 ● 40 40 42 65 85 150 9 3 3 1.3 1 WRX 3050E5342 ● 50 53 42 75 90 165 12 4 3 1.8 1 Body (Short Cutting Edge Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut ShankDCAPMXDMM HeadLH Shank Overall Length Total No.LSLFof TeethSteps EffectiveNumber of Teeth Weight(kg) Fig WRX 3040E2732 ● 40 27 32 60 120 180 6 2 3 1.2 1 WRX 3050E2732 ● 50 27 32 60 120 180 8 2 4 1.4 1 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose Radius RE Fig AXMT 170508PEER-L ● ● ● ● ● Q Q 0.8 1 AXMT 170504PEER-G ● ● ● ● ● Q Q 0.4 1 AXMT 170508PEER-G ● ● ● ● ● Q Q 0.8 1 Fig 1 AXMT 170512PEER-G ● ● ● ● ● Q Q 1.2 1 AXMT 170516PEER-G ● ● ● ● ● Q Q 1.6 1 AXMT 170520PEER-G* ● ● ● ● ● Q Q 2.0 1 AXMT 170530PEER-G* ● ● ● ● ● Q Q 3.0 1 AXMT 170508PEER-H ● ● ● ● ● Q Q 0.8 1AXMT 170512PEER-H●●●●●QQ1.21RE17.54 5.59 AXMT 170504PEER-E ● ● Q Q 0.4 1 AXMT 170508PEER-E ● ● Q Q 0.8 1 AXMT 170512PEER-E ● ● Q Q 1.2 1 AXMT 170516PEER-E ● ● Q Q 1.6 1 AXMT 170520PEER-E* ● ● Q Q 2.0 1 AXMT 170530PEER-E* ● ● Q Q 3.0 1 AXMT 170508PEER-EH ● ● Q Q 0.8 1 AXET 170502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 170504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 170508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 * marked inserts require modification of the cutter body. Recommended Cutting Conditions H83 Parts Flat Screw Wrench * Use peripheral inserts with RE of 0.8 mm or less Nm from the second step and above.BFTX0409IP3.0TRDR15IP * Modification of the cutter body is required when attaching a nose radius RE = 2.0 or 3.0 insert. Modify this portion. Identification Code Reworking guidelines WRX 3 040 E 40 42 For RE = 2.0: C1(AXMT170520PEER) Cutter Series Insert Size Tool Dia. Endmills Cutting Shank Dia. For RE = 3.0: C1.5 (Insert Length Edge (AXMT170530PEER) 17mm) Length Standard: C0.5. N m Recommended Tightening Torque (N·m) H87
