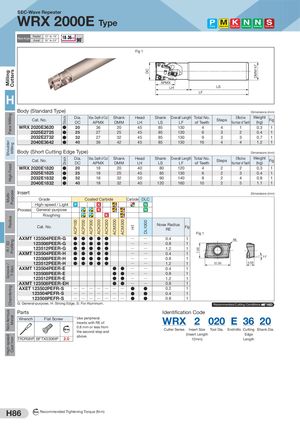

Общий каталог Sumitomo 2019 - 2020 - страница 530

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron StockStock ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 H1 DCDL1000 7.00 DMM h7 SEC-Wave Repeater WRX 2000E Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 13° to 16° Rake Angle to Axial 16° to 24° Fig 1 APMX LH LS LF H Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut ShankDCAPMXDMM HeadLH Shank Overall Length Total No.LSLFof Teeth Steps EffectiveNumber of Teeth Weight(kg) Fig WRX 2020E3620 ● 20 36 20 45 85 130 4 4 1 0.3 1 2025E2725 ● 25 27 25 45 85 130 6 3 2 0.4 1 2032E2732 ● 32 27 32 45 85 130 9 3 3 0.7 1 2040E3642 ● 40 36 42 45 85 130 16 4 4 1.2 1 Body (Short Cutting Edge Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut ShankDCAPMXDMM HeadLH Shank Overall Length Total No.LSLFof Teeth Steps EffectiveNumber of Teeth Weight(kg) Fig WRX 2020E1820 ● 20 18 20 40 80 120 4 2 2 0.3 1 WRX 2025E1825 ● 25 18 25 45 85 130 6 2 3 0.4 1 WRX 2032E1832 ● 32 18 32 50 90 140 8 2 4 0.8 1 WRX 2040E1832 ● 40 18 32 40 120 160 10 2 5 1.1 1 Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 AXMT 123504PEER-G ● ● ● ● ● Q Q 0.4 1 RE AXMT 123508PEER-G ● ● ● ● ● Q Q 0.8 1 AXMT 123512PEER-G ● ● ● ● ● Q Q 1.2 1 AXMT 123504PEER-H ● ● ● ● ● Q Q 0.4 1 AXMT 123508PEER-H ● ● ● ● ● Q Q 0.8 1 11° AXMT 123512PEER-H ● ● ● ● ● Q Q 1.2 1 12.00 3.58 AXMT 123504PEER-E ● ● Q Q 0.4 1 AXMT 123508PEER-E ● ● Q Q 0.8 1 AXMT 123512PEER-E ● ● Q Q 1.2 1 AXMT 123508PEER-EH ● ● Q Q 0.8 1 AXET 123502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 123504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 123508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 G: General-purpose, H: Strong Edge, S: For Aluminum. Recommended Cutting Conditions H83 Parts Identification Code Wrench Flat Screw * Use peripheralinserts with RE of WRX 2 020 E 36 20 0.8 mm or less from Nm the second step and Cutter Series Insert Size Tool Dia. Endmills Cutting Shank Dia. above. (Insert Length Edge TRDR08IP BFTX0306IP 2.0 12mm) Length H86 N m Recommended Tightening Torque (N·m)
