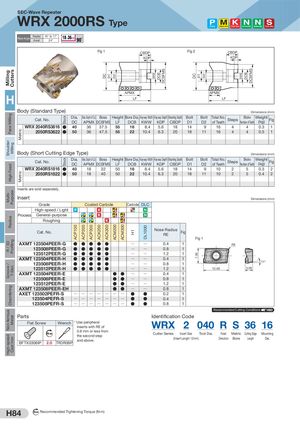

Общий каталог Sumitomo 2019 - 2020 - страница 528

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricMetric StockStock ACP100 ACP200 ACP300 ACK200 DC D1ACK300 D2ACM200 ACM300 H1 DL1000 KWW DCB DCSFMS DC 7.00 D1 D2 KWW DCB DCSFMS SEC-Wave Repeater WRX 2000RS Type Steel Stainless Steel Cast Iron Non-Ferrous Metal Aluminum Alloy Exotic Alloy Radial 16° to 17° Rake Angle to Axial 24° Fig 1 CBDP Fig 2 CBDP KDP KDP APMX APMX H LF LF Body (Standard Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCAPMX DCSFMSLFDCBKWWKDPCBDPD1BoltD2Total No.of TeethSteps Effective Number of Teeth Weight (kg) Fig WRX 2040RS3616 ● 40 36 37.5 55 16 8.4 5.6 18 14 9 16 4 4 0.3 1 WRX 2050RS3622 ● 50 36 47.5 55 22 10.4 6.3 20 18 11 16 4 4 0.5 1 Body (Short Cutting Edge Type)  Dimensions (mm) Cat. No. Dia. Max. Depth of Cut Boss Height Bore Dia. Keyway Width Keyway Depth Mounting Depth BoltDCAPMX DCSFMSLFDCBKWWKDPCBDPD1BoltD2Total No.of TeethSteps Effective Number of Teeth Weight (kg) Fig WRX 2040RS1816 ● 40 18 32 50 16 8.4 5.6 18 14 9 10 2 5 0.3 2 WRX 2050RS1822 ● 50 18 40 50 22 10.4 6.3 20 18 11 10 2 5 0.4 2 Inserts are sold separately. Insert  Dimensions (mm) Grade Coated Carbide Carbide DLC High-speed / Light P K N Process General-purpose K N Roughing K Cat. No. Nose RadiusRE Fig Fig 1 AXMT 123504PEER-G ● ● ● ● ● Q Q 0.4 1 RE AXMT 123508PEER-G ● ● ● ● ● Q Q 0.8 1 AXMT 123512PEER-G ● ● ● ● ● Q Q 1.2 1 AXMT 123504PEER-H ● ● ● ● ● Q Q 0.4 1 AXMT 123508PEER-H ● ● ● ● ● Q Q 0.8 1 11° AXMT 123512PEER-H ● ● ● ● ● Q Q 1.2 1 12.00 3.58 AXMT 123504PEER-E ● ● Q Q 0.4 1 AXMT 123508PEER-E ● ● Q Q 0.8 1 AXMT 123512PEER-E ● ● Q Q 1.2 1 AXMT 123508PEER-EH ● ● Q Q 0.8 1 AXET 123502PEFR-S Q Q Q Q Q Q Q ● ● 0.2 1 AXET 123504PEFR-S Q Q Q Q Q Q Q ● ● 0.4 1 AXET 123508PEFR-S Q Q Q Q Q Q Q ● ● 0.8 1 Recommended Cutting Conditions H83 Parts Identification Code Flat Screw Wrench * Use peripheralinserts with RE of WRX 2 040 R S 36 16 0.8 mm or less fromNmthe second step Cutter Series Insert Size Tool Dia. Feed Metric Cutting Edge Mounting and above. (Insert Length 12mm) Direction Bore Length Dia. BFTX0306IP 2.0 TRDR08IP H84 N m Recommended Tightening Torque (N·m)
