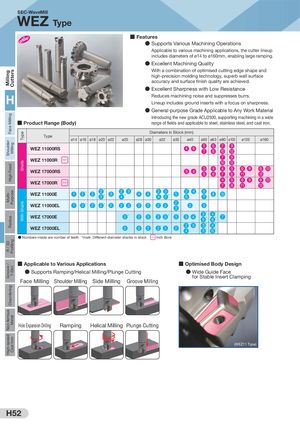

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron TypeShellsWith Shank SEC-WaveMill WEZ Type ■ Features ● Supports Various Machining Operations Applicable to various machining applications, the cutter lineup includes diameters of ø14 to ø160mm, enabling large ramping. ● Excellent Machining Quality With a combination of optimised cutting edge shape and high-precision molding technology, superb wall surface accuracy and surface finish quality are achieved. ● Excellent Sharpness with Low Resistance H Reduces machining noise and suppresses burrs.Lineup includes ground inserts with a focus on sharpness. ● General-purpose Grade Applicable to Any Work Material Introducing the new grade ACU2500, supporting machining in a wide ■ Product Range (Body) range of fields and applicable to steel, stainless steel, and cast iron. Diameters in Stock (mm) Type ø14 ø16 ø18 ø20 ø22 ø25 ø28 ø30 ø32 ø35 ø40 ø50 ø63 ø80 ø100 ø125 ø160 5 6 7 9 WEZ 11000RS 4 6 7 8 10 12 7 9 WEZ 11000R Inch 10 12 3 4 4 5 6 9 8 10 WEZ 17000RS 3 4 5 6 7 8 11 12 4 5 6 9 8 10 WEZ 17000R Inch 7 8 11 12 WEZ 11000E 1 2* 2 2*3* 3 2 3*4* 4 4 2 345* 5 2 46 5 8 107 WEZ 11000EL 1 2* 2 2* 2 2* 3 2 2 2* 3 2 2 33 WEZ 17000E 2* 2 3 2 3* 3 3 4 3* 4*5*6*7 WEZ 17000EL 2 2 2 2* 3 2 3 3* 4*245*6* ● Numbers inside are number of teeth *mark: Different-diameter shanks in stock Inch Inch Bore ■ Applicable to Various Applications ■ Optimised Body Design ● Supports Ramping/Helical Milling/Plunge Cutting ● Wide Guide Face for Stable Insert Clamping Face Milling Shoulder Milling Side Milling Groove Milling Hole Expansion Drilling Ramping Helical Milling Plunge Cutting (WEZ11 Type) H52
