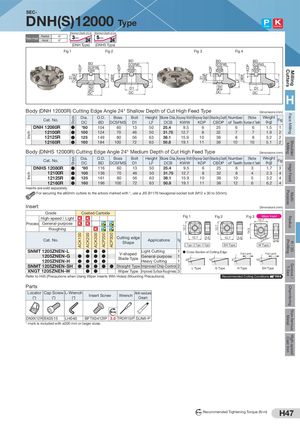

Общий каталог Sumitomo 2019 - 2020 - страница 491

InchInch 31 CBDPStockStock KDPACK100 ACK200 ACK300 ACP200 LF CBDPACP300 KDP LF 12.7 31 CBDP KDP 12.7 LF CBDP KDP14.5 LF High-speedCast IronNon-ferrousMetalChamferingGroove /T-SlotR / 3DProfilingRadiusMulti-PurposeHigh FeedShoulderMillingFace MillingMillingCutters SEC- DNH(S)12000 Type Steel Cast Iron Maximum Depth of Cut Maximum Depth of Cut Radial -6° Rake Angle Axial -5° (DNH Type) (DNHS Type) Fig 1 Fig 2 Fig 3 Fig 4 BDBDDCSFMS BD BDDCSFMSDCSFMS DCSFMS DCB DCB DCB KWW KWW KWW KWW D1ø20 D1DCDC D1ø20 D1DCDC H Body (DNH 12000R) Cutting Edge Angle 24° Shallow Depth of Cut High Feed Type  Dimensions (mm) Cat. No. Dia.DC O.D. Boss BoltBDDCSFMSD1HeightLFBore Dia. Keyway Width Keyway Depth Mounting Depth Number EffectiveDCBKWWKDPCBDPof Teeth Number of TeethWeight(kg)Fig DNH 12080R ● *80 104 60 13 50 25.4 9.5 6 25 6 6 1.5 1 DNH 12100R ● 100 124 70 46 50 31.75 12.7 8 32 7 7 1.9 2 DNH 12125R ● 125 149 80 56 63 38.1 15.9 10 38 8 8 3.2 2 DNH 12160R ● 160 184 100 72 63 50.8 19.1 11 38 10 10 5.1 2 Body (DNHS 12000R) Cutting Edge Angle 24° Medium Depth of Cut High Feed Type  Dimensions (mm) Cat. No. Dia.DC O.D. Boss BoltBDDCSFMSD1HeightLFBore Dia. Keyway Width Keyway Depth Mounting Depth Number EffectiveDCBKWWKDPCBDPof Teeth Number of TeethWeight(kg)Fig DNHS 12080R ● *80 116 60 13 50 25.4 9.5 6 25 6 3 1.7 3 DNHS 12100R ● 100 136 70 46 50 31.75 12.7 8 32 8 4 2.3 4 DNHS 12125R ● 125 161 80 56 63 38.1 15.9 10 38 10 5 3.2 4 DNHS 12160R ● 160 196 100 72 63 50.8 19.1 11 38 12 6 6.2 4 Inserts are sold separately. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K K Fig 1 Fig 2 Fig 3 Wiper Insert12.7 Process General-purpose K K Roughing K Cat. No. Cutting edgeShape Applications Fig 12.7 5.6 12.7 5.6 5.0 5.6 L Type / G Type / H Type SH Type W Type SNMT 1205ZNEN-L ● ● ●SNMT 1205ZNEN-G●●●●SNMT 1205ZNEN-H●●●●Light CuttingV-shapedBlade TypeGeneral-purposeHeavy Cutting1● Cross Section of Cutting Edge1120°10°5°Flat LandFlat Land10° SNMT 1205ZNEN-SH ● ● ● ● ● Straight Type Improved Chip Control 2 L Type G Type H Type SH Type XNGT 1205ZNEN-W ● ● Wiper Type Improved Surface Roughness 3 Refer to H45 (Precautions when Using Wiper Inserts With Holes) (Mounting Precautions). Recommended Cutting Conditions H44 Parts Locator Cap Screw L-Wrench(*)(*)(*) Insert Screw Wrench Anti-seizure Cream Nm DNXK12R BX0515 LH040 BFTX0412IP 3.0 TRDR15IP SUMI-P * mark is included with ø200 mm or larger sizes. N m Recommended Tightening Torque (N·m) H47
