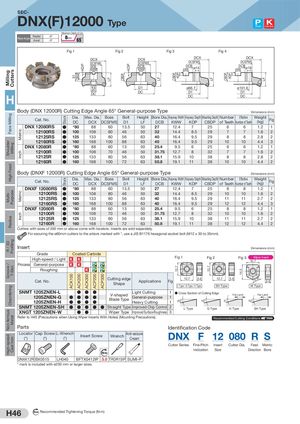

Общий каталог Sumitomo 2019 - 2020 - страница 490

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron MetricInchMetricInch StockStock ACK100 31 CBDPACK200 KDP ACK300 ACP200 ACP300 LF CBDP KDP LF CBDP KDP12.7 12.7 LF CBDP KDP 14.5 LF SEC- DNX(F)12000 Type Steel Cast Iron Maximum Depth of Cut Radial -6° Rake Angle Axial -5° Fig 1 Fig 2 Fig 3 Fig 4 DCX DCX DCX DCX DCSFMS DCSFMS DCSFMS DCSFMS DCBKWW DCBKWW DCB KWW ø14 DCB KWW ø18 ø13ø20DC D1DC ø66.7 ø101.6D1D1 H DC DC Body (DNX 12000R) Cutting Edge Angle 65° General-purpose Type  Dimensions (mm) Cat. No. Dia. Max. Dia. Boss BoltDCDCXDCSFMSD1HeightLFBore Dia. Keyway Width Keyway Depth Mounting Depth Number EffectiveDCBKWWKDPCBDPof Teeth Number of TeethWeight(kg)Fig DNX 12080RS ● *80 88 60 13.5 50 27 12.4 7 25 6 6 1.2 1 DNX 12100RS ● 100 108 80 46 50 32 14.4 8.5 29 7 7 1.6 2 DNX 12125RS ● 125 133 80 56 63 40 16.4 9.5 29 8 8 2.8 2 DNX 12160RS ● 160 168 100 88 63 40 16.4 9.5 29 10 10 4.4 3 DNX 12080R ● *80 88 60 13 50 25.4 9.5 6 25 6 6 1.2 1 DNX 12100R ● 100 108 70 46 50 31.75 12.7 8 32 7 7 1.6 2 DNX 12125R ● 125 133 80 56 63 38.1 15.9 10 38 8 8 2.8 2 DNX 12160R ● 160 168 100 72 63 50.8 19.1 11 38 10 10 4.4 2 Body (DNXF 12000R) Cutting Edge Angle 65° General-purpose Type  Dimensions (mm) Cat. No. Dia. Max. Dia. Boss BoltDCDCXDCSFMSD1HeightLFBore Dia. Keyway Width Keyway Depth Mounting Depth Number EffectiveDCBKWWKDPCBDPof Teeth Number of TeethWeight(kg)Fig DNXF 12080RS ● *80 88 60 13.5 50 27 12.4 7 25 8 8 1.2 1 DNXF 12100RS ● 100 108 80 46 50 32 14.4 8.5 29 10 10 1.6 2 DNXF 12125RS ● 125 133 80 56 63 40 16.4 9.5 29 11 11 2.7 2 DNXF 12160RS ● 160 168 100 88 63 40 16.4 9.5 29 12 12 4.4 3 DNXF 12080R ● *80 88 60 13 50 25.4 9.5 6 25 8 8 1.2 1 DNXF 12100R ● 100 108 70 46 50 31.75 12.7 8 32 10 10 1.6 2 DNXF 12125R ● 125 133 80 56 63 38.1 15.9 10 38 11 11 2.7 2 DNXF 12160R ● 160 168 100 72 63 50.8 19.1 11 38 12 12 4.4 2 Cutters with sizes of 200 mm or above come with locators. Inserts are sold separately. For securing the ø80mm cutters to the arbors marked with *, use a JIS B1176 hexagonal socket bolt (M12 x 30 to 35mm). Insert  Dimensions (mm) Grade Coated Carbide High-speed / Light K K Fig 1 Fig 2 Fig 3 Wiper Insert12.7 Process General-purpose K K Roughing K Cat. No. Cutting edgeShape Applications Fig 12.7 5.6 12.7 5.6 5.0 5.6 L Type / G Type / H Type SH Type W Type SNMT 1205ZNEN-L ● ● ●SNMT 1205ZNEN-G●●●●SNMT 1205ZNEN-H●●●●V-shapedBlade TypeLight CuttingGeneral-purposeHeavy Cutting1● Cross Section of Cutting EdgeFlat Land Flat Land1120°10°5°10° SNMT 1205ZNEN-SH ● ● ● ● ● Straight Type Improved Chip Control 2 L Type G Type H Type SH Type XNGT 1205ZNEN-W ● ● Wiper Type Improved Surface Roughness 3 Refer to H45 (Precautions when Using Wiper Inserts With Holes) (Mounting Precautions). Recommended Cutting Conditions H44 Parts Identification Code Locator Cap Screw L-Wrench(*)(*)(*) Insert Screw Wrench Anti-seizureCream DNX F 12 080 R S Cutter Series Fine-Pitch Insert Cutter Dia. Feed Metric Indication Size Direction Bore Nm DNXK12R BX0515 LH040 BFTX0412IP 3.0 TRDR15IP SUMI-P * mark is included with ø200 mm or larger sizes. H46 N m Recommended Tightening Torque (N·m)
