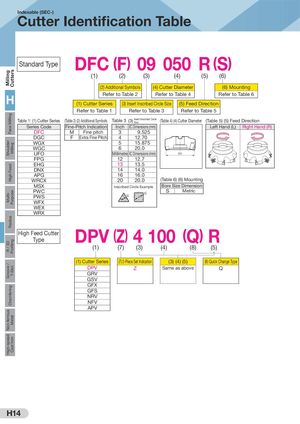

Milling CuttersFace MillingShoulde rMillingHigh FeedMulti-PurposeRadiusR / 3DProfilingGroove /T-SlotChamferingNon-ferrousMetalHigh-speedCast Iron Indexable (SEC-) Cutter Identification Table Standard Type DFC (F) 09 050 R (S) (1) (2) (3) (4) (5) (6) (2) Additional Symbols (4) Cutter Diameter (6) Mounting Refer to Table 2 Refer to Table 4 Refer to Table 6 H (1) Cutter Series (3) Insert Inscribed Circle Size (5) Feed Direction Refer to Table 1 Refer to Table 3 Refer to Table 5 Table 1: (1) Cutter Series (Table 2) (2) Additional Symbols Table 3 (3) Insert Size Inscribed Circle (Table 4) (4) Cutter Diameter (Table 5) (5) Feed Direction Series Code Fine-Pitch Indication Inch IC Dimensions (mm) Left Hand (L) Right Hand (R) DFC M Fine pitch 3 9.525 DGC F Extra Fine Pitch 4 12.70 WGX 5 15.875 WGC 6 20.0 UFO Millimetre IC Dimensions (mm) DC FPG 12 12.7 EHG 13 13.5 DNX 14 14.0 APG 16 16.0 WRCX 20 20.0 (Table 6) (6) Mounting MSX Inscribed Circle Example Bore Size Dimension PWC IC S Metric PWS IC WFX WEX WRX High Feed CutterType DPV (Z) 4 100 (Q) R (1) (7) (3) (4) (8) (5) (1) Cutter Series (7) 2-Piece Set Indication (3) (4) (5) (8) Quick Change Type DPV Z Same as above Q GRV GSV GFX GFS NRV NFV APV H14
