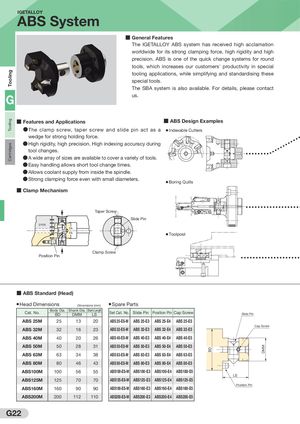

ToolingToolingCartridges BD DMM IGETALLOY ABS System ■ General Features The IGETALLOY ABS system has received high acclamation worldwide for its strong clamping force, high rigidity and high precision. ABS is one of the quick change systems for round tools, which increases our customers' productivity in special tooling applications, while simplifying and standardising these special tools. The SBA system is also available. For details, please contact G us. ■ Features and Applications ■ ABS Design Examples ●The clamp screw, taper screw and slide pin act as a ● Indexable Cutters wedge for strong holding force. ●High rigidity, high precision. High indexing accuracy during tool changes. ●A wide array of sizes are available to cover a variety of tools. ●Easy handling allows short tool change times. ●Allows coolant supply from inside the spindle. ●Strong clamping force even with small diameters. ● Boring Quills ■ Clamp Mechanism Taper Screw Slide Pin 2×FA FA FA ● Toolpost Clamp Screw Position Pin ■ ABS Standard (Head) ● Head Dimensions Dimensions (mm) ● Spare Parts Cat. No. Body Dia. Shank Dia. Shank LengthBDDMMLSSet Cat. No.Slide Pin Position Pin Cap Screw Slide Pin ABS 25M  25  13  20 ABS 25-ES-M ABS 25-E3 ABS 25-E4 ABS 25-E5 Cap Screw ABS 32M  32  16  23 ABS 32-ES-M ABS 32-E3 ABS 32-E4 ABS 32-E5 ABS 40M  40  20  26 ABS 40-ES-M ABS 40-E3 ABS 40-E4 ABS 40-E5 ABS 50M  50  28  31 ABS 50-ES-M ABS 50-E3 ABS 50-E4 ABS 50-E5 ABS 63M  63  34  38 ABS 63-ES-M ABS 63-E3 ABS 63-E4 ABS 63-E5 ABS 80M  80  46  43 ABS 80-ES-M ABS 80-E3 ABS 80-E4 ABS 80-E5 ABS100M 100  56  55 ABS100-ES-M ABS100-E3 ABS100-E4 ABS100-E5 LS ABS125M 125  70  70 ABS125-ES-M ABS125-E3 ABS125-E4 ABS125-E5 Position Pin ABS160M 160  90  90 ABS160-ES-M ABS160-E3 ABS160-E4 ABS160-E5 ABS200M 200 112 110 ABS200-ES-M ABS200-E3 ABS200-E4 ABS200-E5 G22
