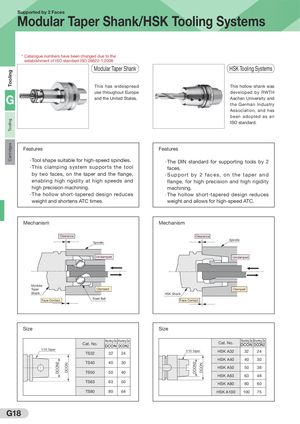

ToolingToolingCartridges DCON2 DCON DCON2 DCON Supported by 2 Faces Modular Taper Shank/HSK Tooling Systems * Catalogue numbers have been changed due to the establishment of ISO standard ISO 26622-1:2008. Modular Taper Shank HSK Tooling Systems This has widespread This hollow shank was use throughout Europe developed by RWTH G and the United States. Aachen University andthe German Industry Association, and has been adopted as an ISO standard. Features Features · Tool shape suitable for high-speed spindles. · The DIN standard for supporting tools by 2 · T his clamping system supports the tool faces. by two faces, on the taper and the flange, · Support by 2 faces, on the taper and enabling high rigidity at high speeds and flange, for high precision and high rigidity high precision machining. machining. · T he hollow short-tapered design reduces · The hollow short-tapered design reduces weight and shortens ATC times. weight and allows for high-speed ATC. Mechanism Mechanism Clearance Clearance Spindle Spindle Unclamped Unclamped Modular Taper Clamped Clamped Shank HSK Shank Face Contact Steel Ball Face Contact Size Size Mounting Dia. Mounting Dia.Cat. No.DCON DCON2 Cat. No. Mounting Dia. Mounting Dia.DCON DCON2 1/10 Taper TS32 32 24 1/10 Taper HSK A32 32 24 HSK A40 40 30 TS40 40 30 HSK A50 50 38 TS50 50 40 HSK A63 63 48 TS63 63 50 HSK A80 80 60 TS80 80 64 HSK A100 100 75 G18
