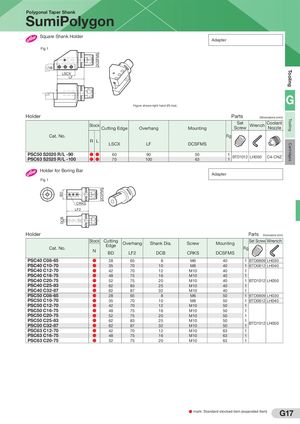

BDDCB DCSFMS DCSFMS CartridgesToolingTooling Polygonal Taper Shank SumiPolygon Square Shank Holder Adapter Fig 1 LSCX LF G Figure shows right hand (R) tool. Holder Parts Dimensions (mm) Stock Cutting Edge Overhang Mounting SetScrewWrench Coolant Nozzle Cat. No. Fig R L LSCX LF DCSFMS PSC50 S2020 R/L -90 ●● 60 90PSC63 S2525 R/L -100●●70100 5063 11BTD1012 LH050 C4-CNZ Holder for Boring Bar Adapter Fig 1 CRKS LF2 Holder Parts Dimensions (mm) Cat. No. Stock CuttingEdgeOverhang Shank Dia. ScrewNBDLF2DCBCRKSMounting Set Screw WrenchFigDCSFMS PSC40 C08-65 ● 28 65 8 M6 40 1 BTD0609 LH030 PSC40 C10-70 ● 35 70 10 M8 40 1 BTD0812 LH040 PSC40 C12-70 ● 42 70 12 M10 40 1 PSC40 C16-75 ● 48 75 16 M10 40 1 PSC40 C20-75 ● 52 75 20 M10 40 1 BTD1012 LH050 PSC40 C25-83 ● 62 83 25 M10 40 1 PSC40 C32-87 ● 62 87 32 M10 40 1 PSC50 C08-65 ● 28 65 8 M6 50 1 BTD0609 LH030 PSC50 C10-70 ● 35 70 10 M8 50 1 BTD0812 LH040 PSC50 C12-70 ● 42 70 12 M10 50 1 PSC50 C16-75 ● 48 75 16 M10 50 1 PSC50 C20-75 ● 52 75 20 M10 50 1 PSC50 C25-83PSC50 C32-87 ● 62 83 25●628732 M10M10 5050 11BTD1012 LH050 PSC63 C12-70 ● 42 70 12 M10 63 1 PSC63 C16-75 ● 48 75 16 M10 63 1 PSC63 C20-75 ● 52 75 20 M10 63 1 ● mark: Standard stocked item (expanded item) G17
