Общий каталог Sumitomo 2019 - 2020 - страница 408

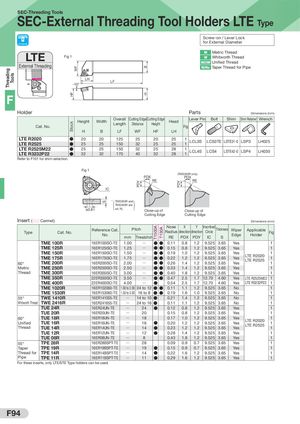

Threading Tools HFStock WF S PDY BH T1500A T130A PDY SEC-Threading Tools SEC-External Threading Tool Holders LTE Type Screw-on / Lever Lock External for External Diameter LTE Fig 1 Metric ThreadWhitworth Thread Unified Thread External Threading Taper Thread for Pipe LH LF -10° F Holder Parts  Dimensions (mm) Cat. No. Height Width Overall Cutting Edge Cutting EdgeLengthDistanceHeightHead Lever PinFig Bolt Shim Shim Retainer Wrench H B LF WF HF LH LTE R2020LTE R2525 ● 20●25 20 125 252515032 2025 2525 11 LCL3S LCS3TE LSTE31-0 LSP3 LH025 LTE R2525M22LTE R3232P22 ● 25●32 25 150 323217040 2532 2828 11 LCL4S LCS4 LSTE42-0 LSP4 LH030 Refer to F101 for shim selection. Fig 1 (TME300R only) PDX PDX RE RE IC * ( TME350R TME400R and are ) *ø3.81 ø4.76. Close-up of Close-up of Cutting Edge Cutting Edge Insert ( Cermet) Dimensions (mm) Type Cat. No. Reference Cat. PitchNo.mmThreads/Inch Nose Radius X direction Y direction Inscribed Circle Thickness WiperREPDXPDYICSEdgeApplicableHolderFig TME 100R 16ER100ISO-TE 1.00 Q ●● 0.11 0.8 1.2 9.525 3.65 Yes 1 TME 125R 16ER125ISO-TE 1.25 Q ●● 0.15 0.8 1.2 9.525 3.65 Yes 1 TME 150RTME 175R60°TME 200R 16ER150ISO-TE 1.5016ER175ISO-TE1.7516ER200ISO-TE2.00QQQ●●0.19 1.0 1.2 9.525 3.65●●0.221.21.29.5253.65●●0.261.41.29.5253.65YesYesYesLTE R2020LTE R2525111 Metric TME 250R 16ER250ISO-TE 2.50 Q ●● 0.33 1.4 1.2 9.525 3.65 Yes 1 Thread TME 300R 16ER300ISO-TE 3.00 Q ●● 0.40 1.8 1.2 9.525 3.65 Yes 1 TME 350R 22ER350ISO-TE 3.50 Q ●● 0.47 2.5 1.7 12.70 4.60 Yes LTE R2525M22 1 TME 400R 22ER400ISO-TE 4.00 Q ● 0.54 2.5 1.7 12.70 4.60 Yes LTE R3232P22 1 TME 1020R 16ER102060-TE 1.00 to 2.00 24 to 12 ● ● 0.11 1.1 1.2 9.525 3.65 No 1 TME 1530R 16ER153060-TE 1.50 to 3.00 16 to 8 ●● 0.19 1.6 1.0 9.525 3.65 No 1 55° TWE 1410R 16ER141055-TE Q 14 to 10 ● 0.21 1.4 1.2 9.525 3.65 No 1 Whitworth Thread TWE 2416R 16ER241655-TE Q 24 to 16 ● 0.11 1.1 1.2 9.525 3.65 No 1 TUE 24R 16ER24UN-TE Q 24 ● 0.12 0.8 1.2 9.525 3.65 Yes 1 TUE 20R 16ER20UN-TE Q 20 0.15 0.8 1.2 9.525 3.65 Yes 1 60° TUE 18RUnifiedTUE 16RThreadTUE 14R16ER18UN-TE Q16ER16UN-TEQ16ER14UN-TEQ18 0.17 1.0 1.2 9.525 3.65 Yes 116●14●0.201.21.29.5253.65YesLTE R2020LTE R252510.231.21.29.5253.65Yes1 TUE 12R 16ER12UN-TE Q 12 ● 0.28 1.4 1.2 9.525 3.65 Yes 1 TUE 08R 16ER08UN-TE Q 8 0.43 1.8 1.2 9.525 3.65 Yes 1 55° TPE 28R 16ER28BSPT-TE Q 28 0.09 0.9 0.7 9.525 3.65 Yes 1 Taper TPE 19R 16ER19BSPT-TE Q 19 ● 0.15 0.9 0.7 9.525 3.65 Yes 1 Thread for TPE 14R 16ER14BSPT-TE Q 14 ● 0.22 1.6 1.2 9.525 3.65 Yes 1 Pipe TPE 11R 16ER11BSPT-TE Q 11 ● 0.29 1.6 1.2 9.525 3.65 Yes 1 For these inserts, only LTE/STE Type holders can be used. F94
